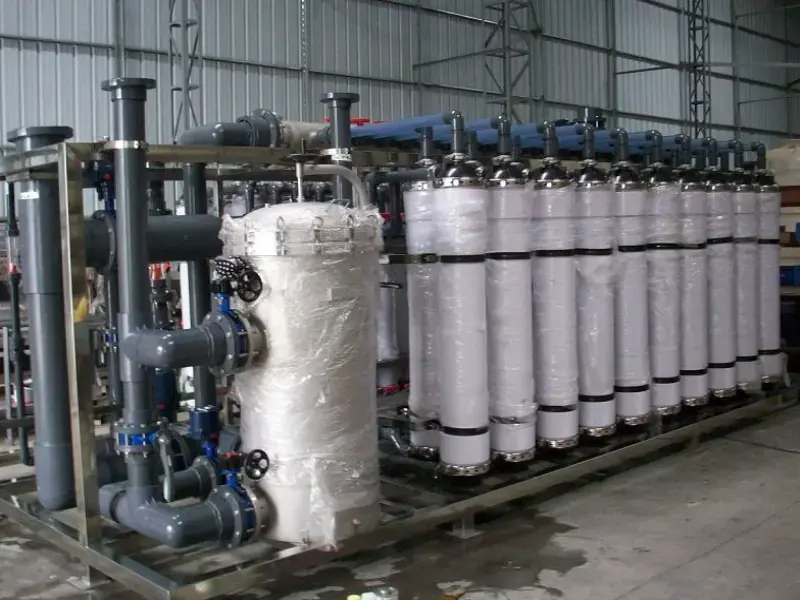

Ultra filtration system ultra filtration plant
The client should supply the basic condition of ultra filtration plant cost：
Required floor smooth, floor ground should have drain trench. Water quality basic steady, pressure steady.
Control method of ultra filtration system cost :
Whole system use automatically control model, Sand filter Carbon filter with auto and manual back flush. The carbon filter automatic flushing at each start up. Full water level auto stop, low water level auto start . Pump protected without water, protected when no power, poor power, larger electrical current, leakage, short circuit.
Ultra filtration plant process flow introduction
Source tank →Feed water pump → multi- media filter(sands filter) → active carbon filter → water softener/antiscalant dosing device(option) →Cartridge/Security/Micro filter→Ultrafiltration system →purified tank→ UV sterilization
Technical details of Ultra filtration plant :
| NO. | Items | Specification | Unit | Quantity | Remark |
| 0 | Source tank | 20m3 | seat | 1 | By client |
| The following plant belong to Haiyuan supply scope | |||||
| 1 | Booster pump | CM25-3/4.8kw | set | 1 | Grundfos |
| 2 | Sand filter | Φ1500×2400(mm) | set | 1 | FRP |
| Auto Control valve | F112B | set | 1 | Runxin/China | |
| Quarts sand | 0.2-1.1-2, 2-4,4-8mm | kg | 3000 | Haiyuan | |
| 3 | Carbon filter | Φ1500×2400(mm) | set | 1 | FRP |
| Auto Control valve | F112B | set | 1 | Runxin/China | |
| Active carbon | Quarts sand 500kg
Active carbon 800kg 4-8mm |
kg | A lot | Haiyuan | |
| 4 | Back wash pump for sand carbon filter | CR64-1-1/4KW | set | 1 | Grundfos |
| 5 | Security sediment filter | 40inch big flow filter
Material: FRP 1 set |
set | 1 | FRP |

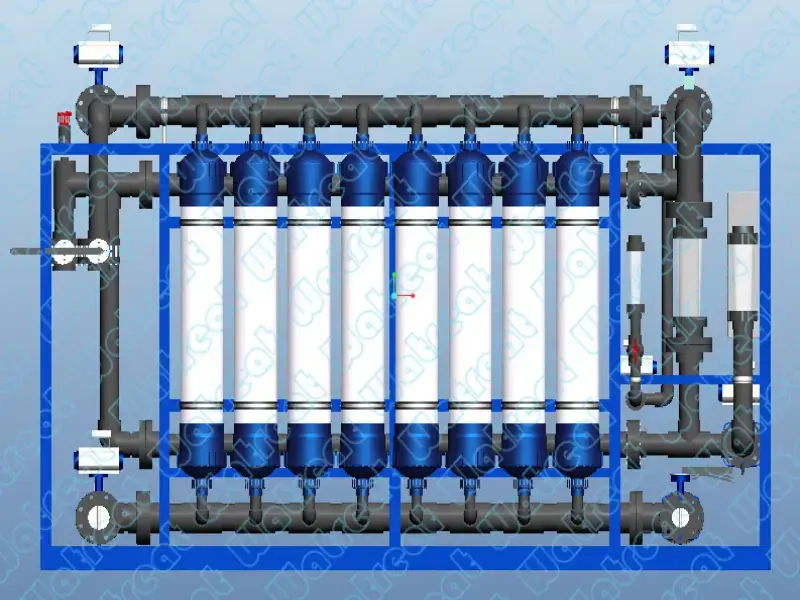

| 6 | UF system | Model: HY-UFc200AM
Spec: 8inch 10pcs Accessories：Valves ,Flow rate, pressure gauge, etc. skid frame: stainless steel |
set | 1 | Haiyuan |
| 7 | UF back wash pump | CR45-1-1/2.2kw | set | 1 | Grundfos |
| 8 | Air blow for UF back wash | 4RB 420 H26/1.5KW | set | 1 | GZLing |
| 9 | UF back tank | 15T | set | 1 | CNP |
| 10 | Chlorine dosing device | Dosing pump:KCL-635
Dosing tank:KCL-635 |
set | 1 | SEKO |
| 11 | Interconnecting piping&valve | filter pressure piping,bends,
Food satage UPVC |
A lot | 1 | Haiyuan |
| 12 | control for electrical controller system | Mistubishi PLC and Weinview HMI
AC contractor, time relay, insurance etc electrical components, electric cabinet, Wire and cable.Power& control cables Instrument cables for the instrumentation items |
A lot | 1 | Haiyuan |
| 13 | Instrumentation | Pressure gauges:
Filters-inlet&outlet UF –inlet&reject Level switch:All storage tanks Flow meter: two pcs Press switch:Low&high pressure switch |
A lot | 1 | Haiyuan |
| 14 | UF chemical pump | CM25-1-G/2.2kw | set | 1 | Grundfos |
| 15 | UF chemical cleaning filter | 40inch big flow filter
Material: FRP 1 set Chemical cleaning tank 1000L |
set | 1 | FRP |
What factors determine the ro uf water plant price?
1. To provide a source water quality report, in which range is the TDS, Iron, manganese, Turbidity.
2. The pretreatment filter has FRP and stainless steel etc. UF has PVC and PVDF material.
3. The pump brand has Grundfos, CNP, or other brands.
4. UF membrane brand has Dow or other Chinese brands.
5. Control system has a normal control panel and PLC and HMI control for your reference.
The Ultrafiltration unit cost is determined by the above factors.
For more information on our available Ro uf water filter cost
technologies, contact us now to get quotation.
