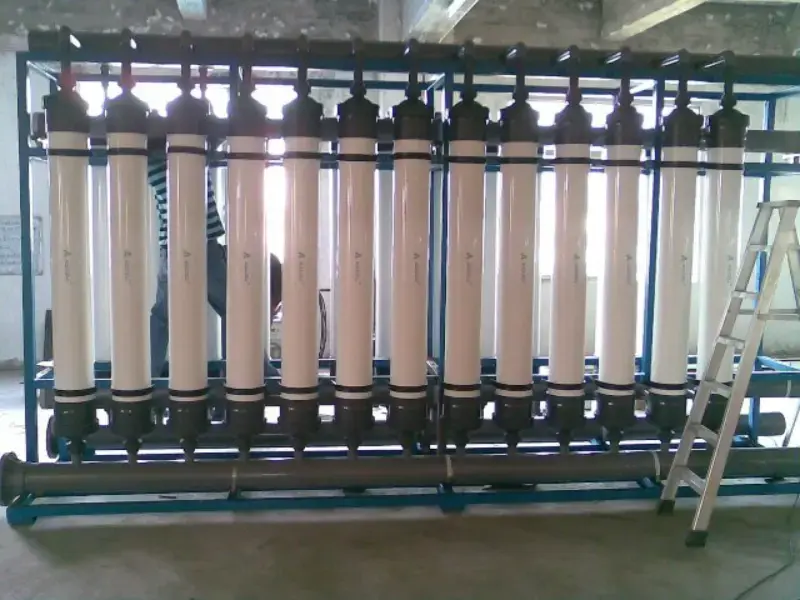

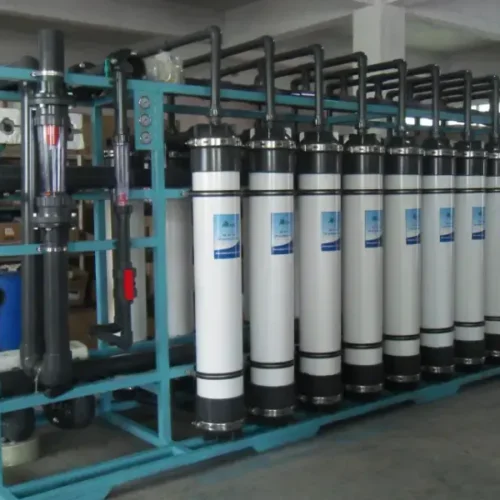

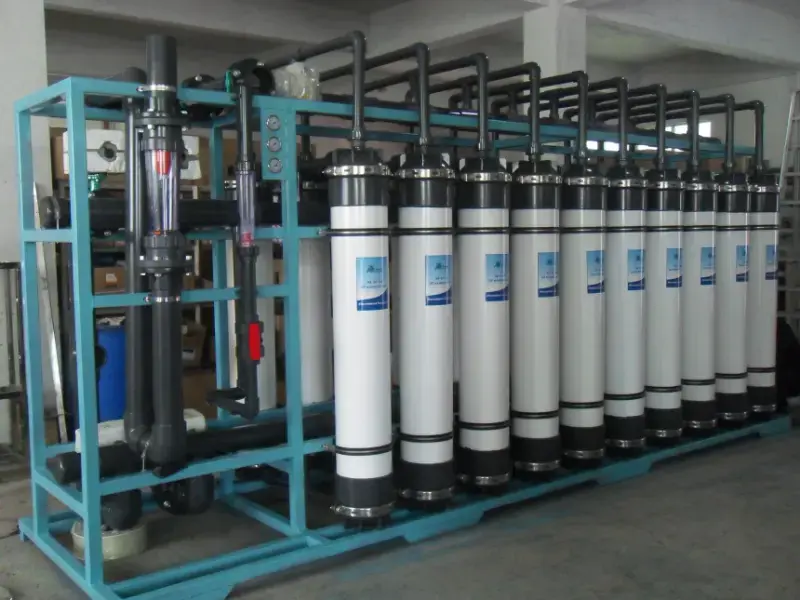

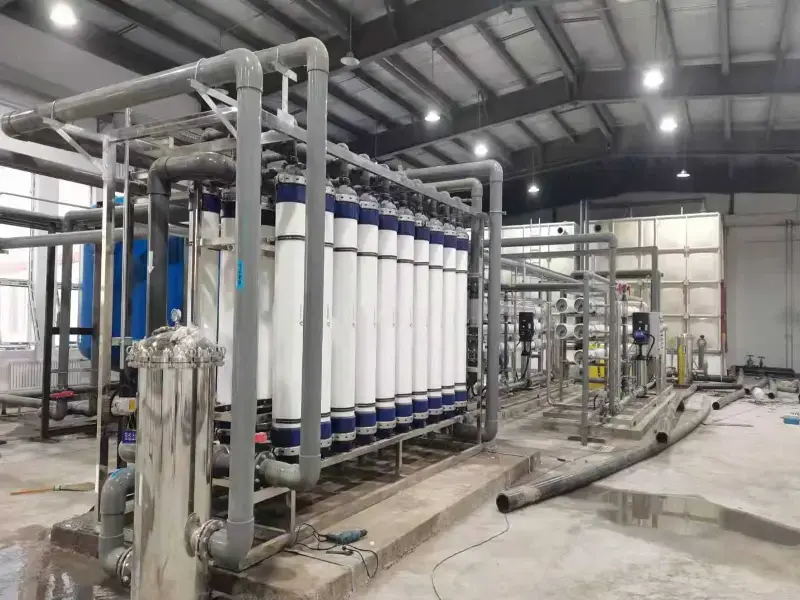

Uf ultrafiltration water treatment system
A.Uf ultrafiltration water treatment system design basis
1． Water temperature：4—45℃
2．Feed water: Wastewater/river water/well water
3．Production capacity: 1000L/hr to 100m3/hr
B.Uf ultrafiltration water treatment system control method
Whole system use full control. The UF system automatic flushing at each startup and shutdown. High water level auto stop, low water level auto start. Pump protected without water.
Protected when no power, poor power, larger electrical current, leakage, short circuit
C.Uf ultrafiltration water treatment system process
Source tank →Feed water pump → multi- media filter(sands filter) → active carbon filter → water softener（or inhibitor dosing）→Cartridge/Security/Micro filter→Ultrafiltration system →purified tank→ UV sterilization
D.Uf ultrafiltration water treatment system application field
Drink pure water, mineral water, residential direct drinking water, beverages, beer, brewing, dairy industry, seawater desalination, brackish water treatment, etc.
1) It is suitable for making direct drinking water in communities, schools, factories and other units.
2) Can be used for the preparation of bottled water, mineral water and other filling water.
3) Concentrate and recover the useful solution of the aqueous solution in industrial production;
4) Pure water device is used as the first-level desalination equipment for high-purity water production. A
5) Electronic industry water IC, silicon wafer, display tube and other electronic components rinse water
6) The pharmaceutical industry uses water infusions, injections, tablets, biochemical products, equipment cleaning, etc .;
7) Other process water Ultra pure water for automobile, home appliance coating, coated glass, cosmetics, fine chemicals, etc.
E.Uf ultrafiltration water treatment system advantages
Direct drinking uf water purifier are more reliable than a conventional multi-media filter, which removed approximately 10 micron or larger of matter, where an ultrafiltration membrane pore size ranges from 0.01 to 0.10 micron. In addition to superior turbidity removal, UF membranes efficiently remove bacteria and most viruses.
1) Superior filtration performance with high flux
2) Very small nominal pore diameter (0.03 um)
3) Efficiently removes bacteria and viruses
4) Occasionally back washed and air scoured to boost performance and removing the fouling layer to extend operating life
5) Low fouling membrane modules
6) UF Outside-In or Inside-Out Configuration permits reduced plugging and higher solids loading
7) Basic, vertical, modular design permits low cost, compact systems
8) Effective membrane cleaning has a high chemical resistance and temperature tolerance
Inquiry Guides
To find the most appropriate for your use, please advise the following information ready
· Product water flow rate ( m3/hr, m3/day, Liter/hr,GPM,GPD etc.)
·Product water purpose(drinking, irrigation, industry process or others)
· Feed Water TDS (Total dissolved solids). Is it from Borehole/salt/brackish/lake water
· Power (110/220/380V/415V/460V, 50 or 60 Hz) 3 phase.
· It is necessary to make water analysis reprot for borehole water,lake water, seawater.
· If soure water is tap water no need water analysis report.
