Mobile water filtration system solution
Source water: direct seawater or drill salt water, borehole water
Purpose: For drinking water, irrigation, or other industrial processes purpose.

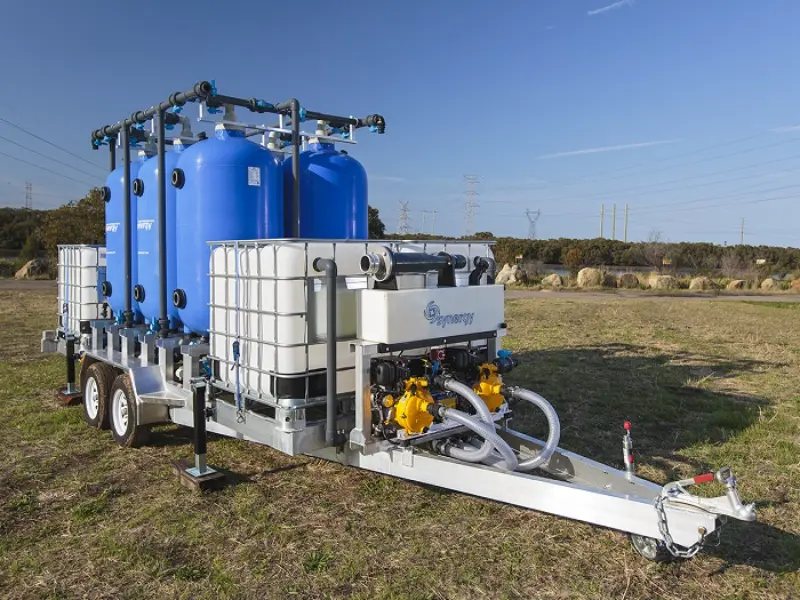

It will be by trailer car drg.
Mobile water Filtration process
A) Pumping underground water to→(air blower)Aeration+NaCIO disinfection tank→sedimentation tank→Feed water pump →Iron remove filter → active carbon filter → water softener（Optional）→ bag filter→UF system→ purified water tank
B) Pumping underground water to→(air blower)Aeration+NaCIO disinfection tank→sedimentation tank→Feed water pump →Iron remove filter → active carbon filter → water softener（Optional）→ micron filter→RO system→ fresh tank
Why choose Mobile water filtration system ?
Mobile water filtration system have many advantages over built-in plant room installations:
· Plug and play unit
· Quick installation
· Limited civil work (only container foundation)
· Small foot print
· Easy transportation
· Mobile: useful for construction sites
· Turnkey delivery: piping, cables, air conditioning
Mobile water filtration system feature：
Mobile water filtration system in insulated (20 or 40 ft) containers. mobile includes all piping and fittings connected, all cables and wires connected to instrument and control cabinet. This is a “plug and play” desalination system supply.
The mobile water filtration will be mounted with one side door, one inlet/outlet (terminal point), one side door and floor drainage.
The container can be air cooled on request. The Air condition is a split-unit and the outdoor part will be placed next to the container.
Haiyuan provides all kinds of pre-treatment required before SWRO, according to source water analysis and process requirements.

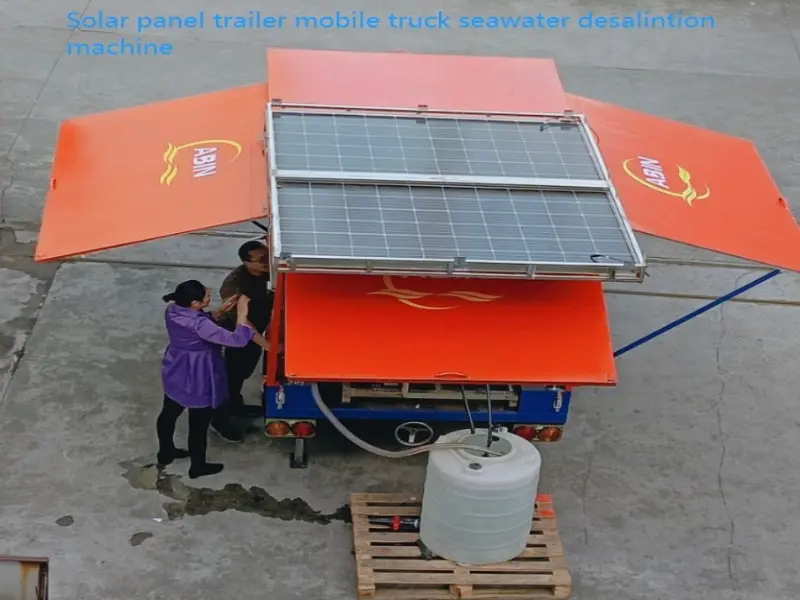

Solar powered as user option
Mobile water filtration system Size / Standard
Depending on the plant size, mobile plant in 20 or 40 ft container(s) are available.
| Below is 20GP container capacity parameter | |||||
| Model | Membrane model*qty | Capacity m3/D | Weight/kg | Operating Pressure/Mpa | Power |
| HYSW-20GP-20 | 4040×8 | 20 | 2800 | 4.0-6.5 | 220V-440V/
50Hz-60Hz |
| HYSW-20GP-26 | 4040×10 | 26 | 2860 | 4.0-6.5 | |
| HYSW-20GP-30 | 4040×12 | 30 | 2920 | 4.0-6.5 | |
| HYSW-20GP-40 | 4040×16 | 40 | 3030 | 4.0-6.5 | |
| 20GP Container-frame: 20 ft according to ISO- standard (5.85×2.23×2.15 meter). |
|||||
| · suit for long-distance transport
· easy installation · save space for customers More detail need customized according user requirement. |
|||||
| Below is 40HGP container capacity parameter | |||||
| Model | Membrane model*qty | Capacity m3/D | Weight/kg | Operating Pressure/Mpa | Power |
| HYSW-40HGP-60 | 8040×6 | 60 | 4900 | 4.0-6.5 | 380V-440V
/50Hz-60Hz |
| HYSW-40HGP-80 | 8040×8 | 80 | 5050 | 4.0-6.5 | |
| HYSW-40HGP-100 | 8040×10 | 100 | 5150 | 4.0-6.5 | |
| HYSW-40HGP-120 | 8040×12 | 120 | 5230 | 4.0-6.5 | |
| HYSW-40HGP-150 | 8040×16 | 150 | 5530 | 4.0-6.5 | |
| Container-frame: 40 ft according to ISO- standard (12,4 x 2,4 x 2,8 meter). |
|||||
| · suit for long-distance transport
· easy installation · save space for customers More detail need customized according user requirement. |
|||||

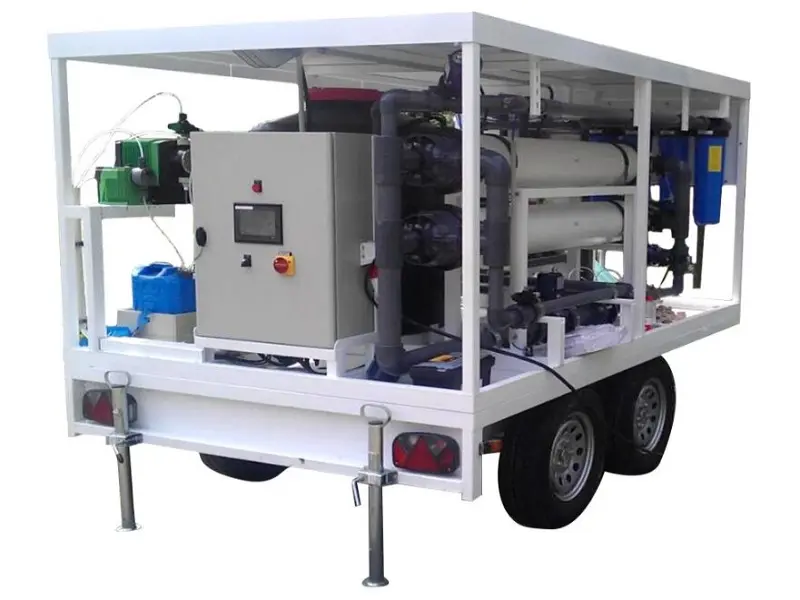

mobile reverse osmosis trailer car watertreatment trailer car water treatment
Mobile water filtration system key Instrumentation
1. TDS meter (RO feed, Fresh water)
2. ORP (RO feed)
3. pH (RO feed, Fresh water)
4. Pressure sensor (UF feed, Fresh water)
5. Flow meter (UF feed, RO feed, Fresh water, RO brine)
6. Pressure switch (RO feed, Fresh water)
7. Float switch for feed water and fresh water
Haiyuan except are good at produce Containerized RO water purification system,But also the other type seawater desalination plant system is also our company are good at.
