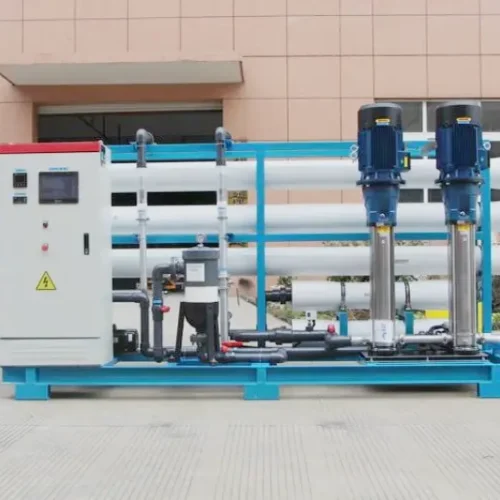

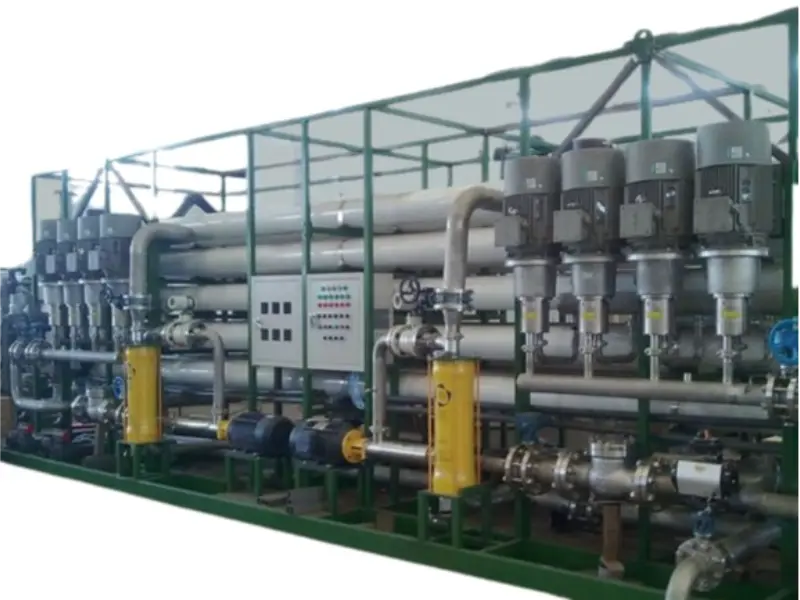

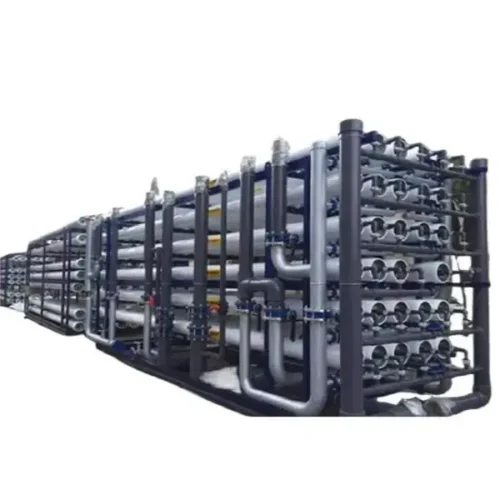

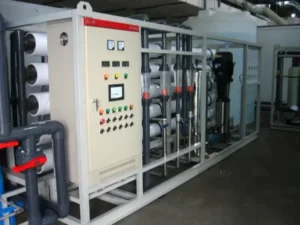

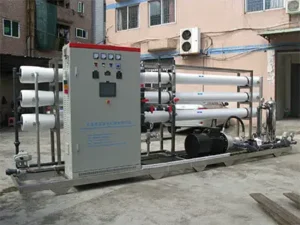

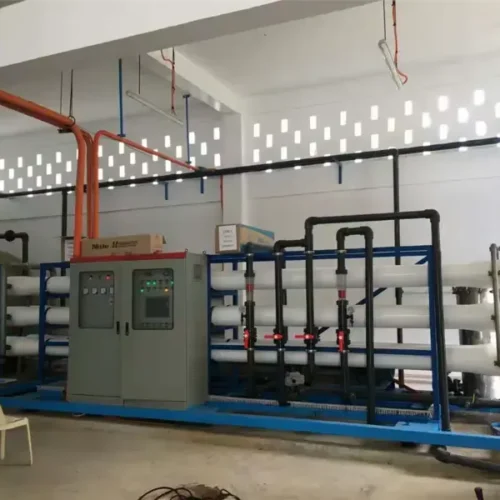

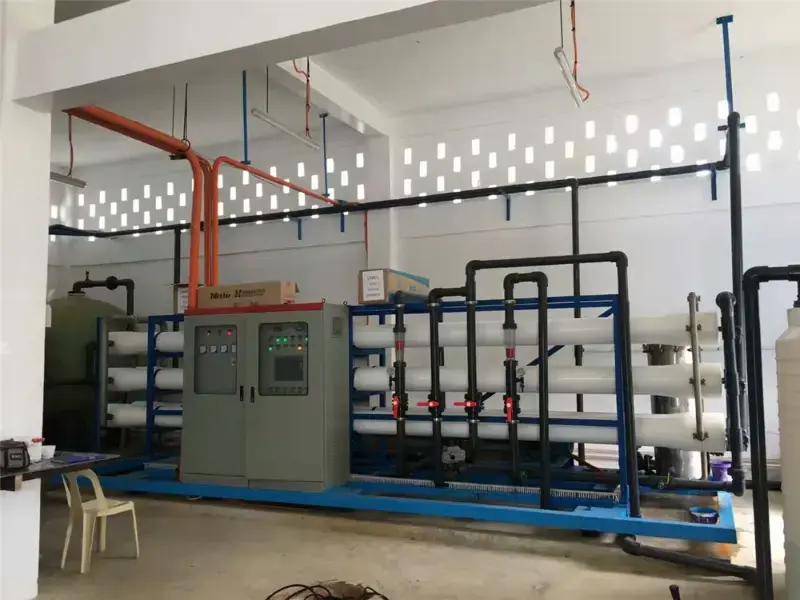

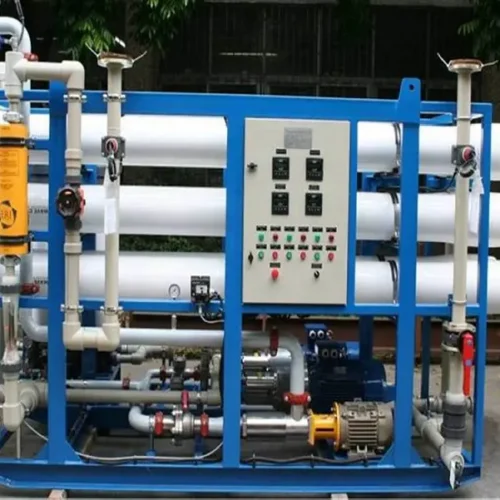

Seawater reverse osmosis desalination system
A.Seawater reverse osmosis desalination system design concept:
a- seawater reverse osmosis desalination system for boat is compact and stable operation.
b- seawater reverse osmosis desalination system pipe line: Low pressure use UPVC pipe, high pressure use SS316L corrosion resistance ,to use less bend pipe, reducing pipe and valve.
c-seawater reverse osmosis desalination system to use hose which could reduce vibration and lower noise.
d-desalination system control part: PLC and HMI auto control. Press button start. Auto flushing when start and off. Like this way can prolong RO membrane lifetime.
e-RO desalination system alarm reminder when there is any problem.
f-seawater desalination All the working process and alarm will be showed on the touch screen.
We can custom capacity from 1000L/hr, 10m3/hr to 100m3/hr. etc. The capacity of seawater desalination plant is customized based on user detail requriements.
B. seawater reverse osmosis desalination system parameter
| HY-SWRO-5m3/hr(100m3/D) | |||
| Flow rate | 100m3/day | Recovery rate | 40% |
| Applicable power | 380V/50HZ 3 phase | Rated power | 32.4 KW |
| Feedwater TDS | <45000ppm | Freshwater TDS | <600ppm |
| Working pressure | <6Mpa | Operating temperature | 5-45℃ |
| Feedwater residual chlorine | <0.1ppm | Feedwater SDI | <5 |
| Feedwater turbidity | <1NTU | Feedwater PH value | 3-10 |
| RO membrane housing | 8040-4 core | RO membrane | 8 piece |
| Equipment specification | 6X1.2X1.65(m) | Net weight | 1500Kg |
| Packing specification(Plywood) | 6.1X1.3X1.68(m) | Gross weight | 1800Kg |
RO seawater desalination system parameter
| HY-SWRO-8~9m3/hr(200m3/D) | |||
| Flow rate | 160T/day | Recovery rate | 45% |
| Applicable power | 380V/50HZ 3 phase | Rated power | 53KW |
| Feedwater TDS | <45000ppm | Freshwater TDS | <600ppm |
| Working pressure | <6Mpa | Operating temperature | 5-45℃ |
| Feedwater residual chlorine | <0.1ppm | Feedwater SDI | <5 |
| Feedwater turbidity | <1NTU | Feedwater PH value | 3-10 |
| RO membrane housing | 8040-5 core,3piece | RO membrane | 15 piece |
| Equipment specification | 6X1.2X1.65(m) | Net weight | 1500Kg |
| Packing specification(Plywood) | 6.1X1.3X1.68(m) | Gross weight | 1800Kg |
C. seawater reverse osmosis desalination systemt design concept
-Pipe line: low pressure use UPVC pipe, High pressure use SS316L corrosion resistance,try to use less bend pipe, reducing pipe and valve.
-To use hose which could reduce vibration and lower noise.
-Control part: PLC and HMI Auto control.
-Press button start. auto flushing when start and off. Like this way can prolong RO membrane lifetime.
-Alarm reminder when there is any problem.
D.seawater reverse osmosis desalination system flow
Sea water tank →Feed water pump →Sand filter → Scale inhibition→ 5μSecurity filter →1μSecurity filter → High-pressure pump → RO system (CIP)→ Product water tank
