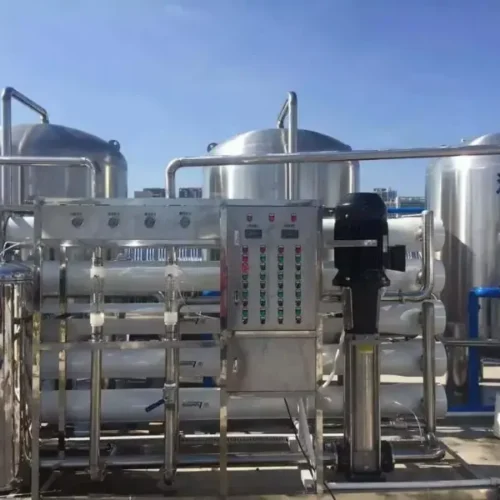

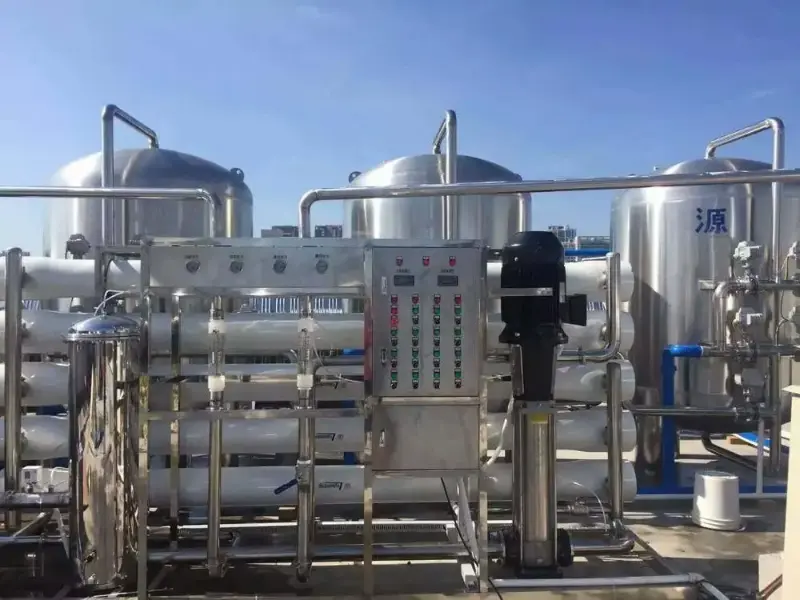

Reverse osmosis ro water purification unit 10m3/hr
A Reverse osmosis ro water purification unit design basis
1. Feed water: raw water :<=1500 PPM
2. Output pure water = 20 PPM
3.Water temperature：4 – 45℃
4.Production capacity: 30T/hr
B.Reverse osmosis ro water purification unit process
Raw water pump→ Quartz sand filter→ Activated carbon filter→ (Water softener)→Security filter → High pressure pump →Reverse osmosis system→ (Ozone generator)→ Purified water tank
(The client should supply all the water tank )
C. Reverse osmosis ro water purification unit function of every part
| 1. Raw water pump– provide the pressure to quartz sand filter/active carbon filter/ water softener |
| 2. Sand filter– get rid of turbidity, suspended matter |
| 3. Active Carbon filter–Remove the color, free chloride, organic matter, harmful matter, ect. |
| 4. Softener–exchange “ions” of calcium and magnesium with the most common and easiest method. |
| 5. Security filter–prevent large particles into RO membrane, accuracy is 5um, |
| 6. High pressure pump– Provide the high pressure to RO membrane |
| 7. RO system– main part of the plant. The RO membrane’s desalting rate can reach 97% and above, removing over 99% ions. |
D.Reverse osmosis ro water purification unit precise design selection components show

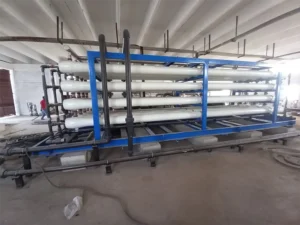

E.Reverse osmosis ro water purification unitmore different model of the product for your reference
| Model | Capacity | Inlet Pipe(Inch) |
Outlet Pipe(Inch) |
Rated Power (KW) |
Demension L*W*H (CM) |
Quotation
（EXW USD） |
Ship Weight (Kg) |
| JSPS-0.25T | 1500GPD(0.25m3/h) | 1/2″ | 1/2″ | 1.65 | 180*90*170 | 1880-2179 | 200 |
| JSPS-0.5T | 3000GPD(0.5m3/h) | 3/4″ | 1/2″ | 1.65 | 180*90*170 | 2183-2494 | 220 |
| JSPS-0.75T | 3000GPD(0.5m3/h) | 3/4″ | 1/2″ | 1.65 | 180*90*170 | 2547-2872 | 300 |
| JSPS-1T | 6000GPD(1.0m3/h) | 1″ | 3/4″ | 1.65 | 190*100*210 | 2982-3326 | 350 |
| JSPS-1.5T | 9000GPD(1.5m3/h) | 1″ | 3/4″ | 2.3 | 190*100*210 | 3711-4238 | 370 |
| JSPS-2T | 12000GPD(2.0m3/h) | 1-1/4″ | 1″ | 3 | 230*100*210 | 4612-5139 | 450 |
| JSPS-2.5T | 15000GPD(2.5m3/h) | 1-1/4″ | 1″ | 4 | 230*100*210 | 5442-6492 | 520 |
| JSPS-3T | 18000GPD(3.0m3/h) | 1-1/2″ | 1″ | 5.5 | 245*100*210 | 7526-8399 | 610 |
| JSPS-4T | 24000GPD(4.0m3/h) | 1-1/2″ | 1-1/4″ | 7 | 275*100*210 | 8970-13127 | 740 |
| JSPS-5T | 30000GPD(5.0m3/h) | 1-1/2″ | 1-1/4″ | 7 | 300*100*210 | 10308-14411 | 880 |
F.Our service
1.All the machine can be warranted for one year.
2.Can offer the engineer to overseas to offer the training.
3.Offer the technical support all the time.
4.Every machine before shipped will be test for some time to ensure without any problems.
5.Good production capacity, will arrange the shipment on time!
In order to send you correct information please tell me below information
1. How many liters outlet water per hour do you require?(500L/H,1000L/H, 50m3/hr,etc.)
2. Where is the source of water? For example, well water/borehole water, river water. Have you obtained any results from the water analysis or are you aware of the water quality? The total dissolved solids, Fe, Mg, Hardness, etc., are defined as TDS, regardless of whether it has been overproofed or not.
3. After treatment, does the water meet the WHO drinking water standard, bottle water standard, or other industrial purpose?
4. Your local power supply is either 380V/50Hz 3-phase, 380V/60Hz 3-phase, 440/60Hz 3-phase, or another voltage.
