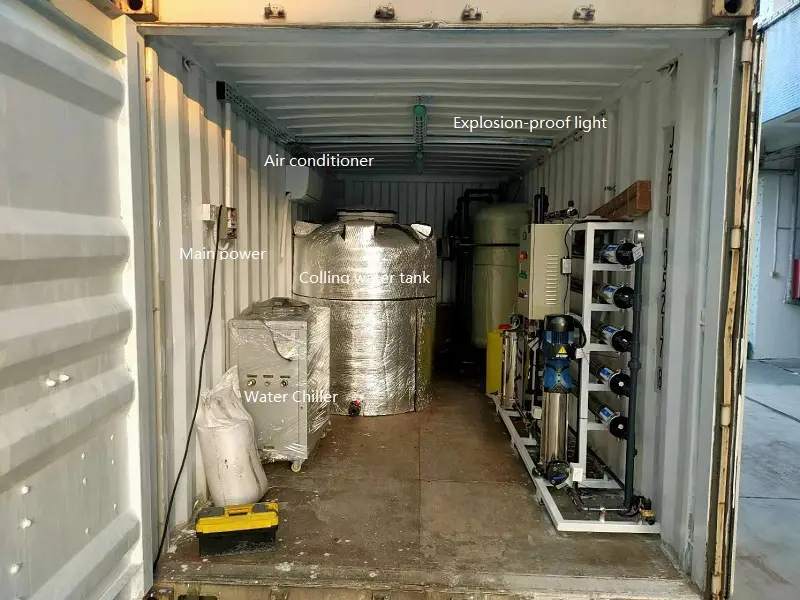

Mobile water treatment systems unit
A: Mobile water treatment systems design basis
1. Input water: Tapwater, set TDS 1000ppm
B:Mobile water treatment systems unit process flow
Raw water tank → Feed water pump → Sands filter → Actived carben filter→ Scale inhibition →5μ Security filters →→1μ Security filter→ High pressure pump → RO system (CIP) → RO water tank
C.Mobile water treatment systems stage introduction
1.Feed water pump– provide the pressure to quartz sand filter/active carbon filter.
2.Sands filter–get rid of turbidity, suspended matter, organic matter, colloid, ect.
3.5μ Security filters –prevent large particles, bacteria, viruses into RO membrane, accuracy 5μm
4.1μm Security filter– Prevent large particles, bacteria, viruses into RO membrane, accuracy 1μm
5.High pressure pump–Provide the high pressure to RO membrane ro.
6.RO system– main part of the plant. The RO membrane’s desalting rate can reach 99%, removing over 99% ions.
D.Mobile water treatment systems product parameter
| HY-RO-18m3/hr | |||
| Flow rate | 18m3/hr | Recovery rate | 60% |
| Applicable power | 380V/50HZ 3 phase | Rated power | 30KW |
| Feedwater TDS | <1000ppm | freshwater TDS | <20ppm |
| Working pressure | <1.5 -2Mpa | operating temperature | 5-45℃ |
| Feedwater residual chlorine | <0.1ppm | Feedwater SDI | <5 |
| Feedwater turbidity | <1NTU | Feedwater PH value | 3-10 |
| Equipment specification | 11X1.2X1.7(m) | Net weight | 2600Kg |
| Packing specification(Plywood) | 40HQ Container | Gross weight | 2800Kg |
In order to send you correct information please tell me below information
- How many liters outlet water per hour do you require?(500L/H,1000L/H, etc.)
- Where is the source water from? (Eg: well water/borehole water, river water. etc.)- Do you have water analysis result or know the water quality? (The TDS=total dissolved solid, Fe, Mg, Hardness etc. whether over proof etc).
- After treated, the water meet WHO drinking water standard, or as per bottle water standard or other industrial purpose?
- Your local power is 380V/50hz 3phase or 380V/60Hz 3 phase, 440/60hz 3 phase or other voltage?
BTW: If source water is Municipal tap water or clean reservoir water or spring water no need report. But please inform us the water characteristic.
Please contact us!
Email: Sales@seawaterroplants.com
Mob&WhatsApp&WhatChat: +86 13798883773, +8613532836525
Mobile water treatment systems based on different capacity and treated water standard or purpose. we will supply the Optimization solution for client.
