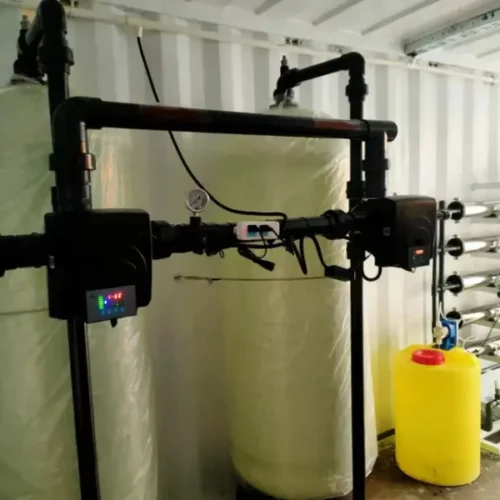

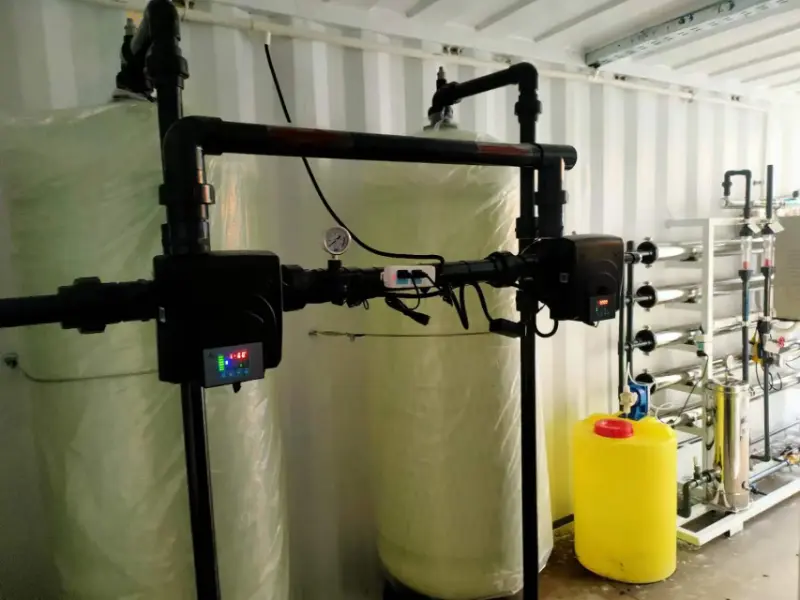

Mobile water treatment plant filter 5m3ph



Desalination System|RO water treatment

A: Mobile water treatment plant filter Overview

Model	SWRO-5m3/hr
Quantity	1 set
Origin	CHINA
Brand	Haiyuan
Produced Flow Rate	5m3/hr
Power Supply	220V, 60HZ 3phase
Voltage/Frequency	2KW
Raw Water	TDS≤10000ppm
Product Water	TDS≤200ppm
Control Plant size	About  L5*W1.2*1.6m
Remarks	Feature: Pipe   line: Low pressure use UPVC pipe, High pressure use SS316L Corrosion   resistance，Try to use less bend pipe, reducing pipe and valve. To use hose which could reduce vibration and lower noise. Press   button start. Auto flushing when start and off. Like this way can   prolong RO membrane lifetime. Alarm   reminder when there is any problem. Note:   TDS variations and temperature changes will cause variation in the system   running.

B:Mobile water treatment plant filter design basis

1.Input water: Seawater, set TDS=35000ppm

2. Output water: Drinking directly

3. Water temperature: 2—50℃

4. Production capacity: 80,000GPD/ 24 hours= 3,333GPH

5. Voltage: 380V, 50Hz, 3 phase

6. Power supply: 2kw/hr

7. Delivery: 20ft High Cubic Container×1

C:Mobile water treatment plant filter process flow

Raw water tank → Feed water pump → Sands filter → Scale inhibition →5μ Security filters →→1μSecurity filter→ High pressure pump → RO system (CIP) → RO water tank
