Mobile water purification system
1. Mobile water purification system product parameter
| HY-RO-16m3/hr | |||
| Flow rate | 16m3/hr | Salt removing rate | 99% |
| Feedwater TDS Max | <10000ppm | freshwater TDS | <600ppm |
| Working pressure | <2Mpa | operating temperature | 5-45℃ |
| Feedwater residual chlorine | <0.1ppm | Feedwater SDI | <5 |
| Feedwater turbidity | <1NTU | Feedwater PH value | 5-10 |

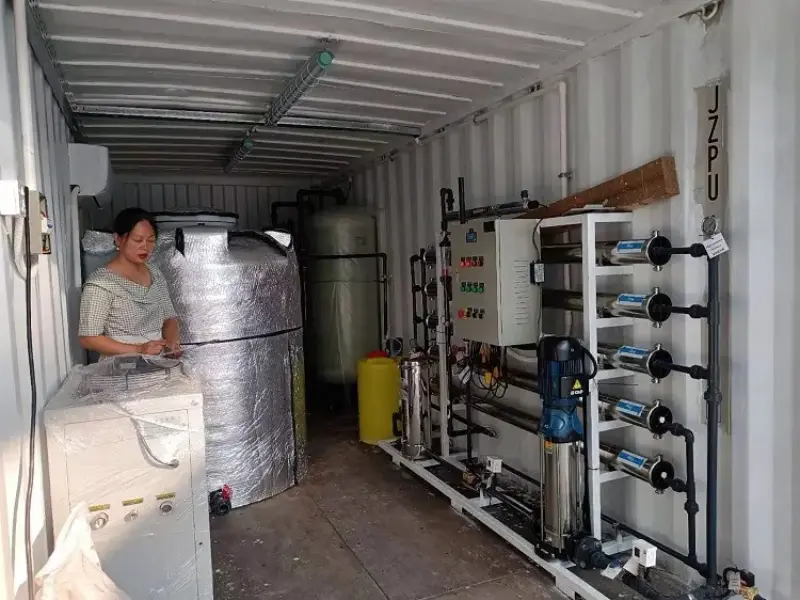

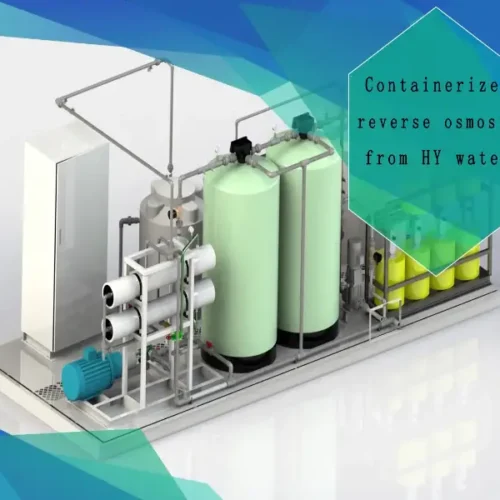

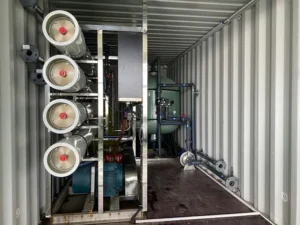

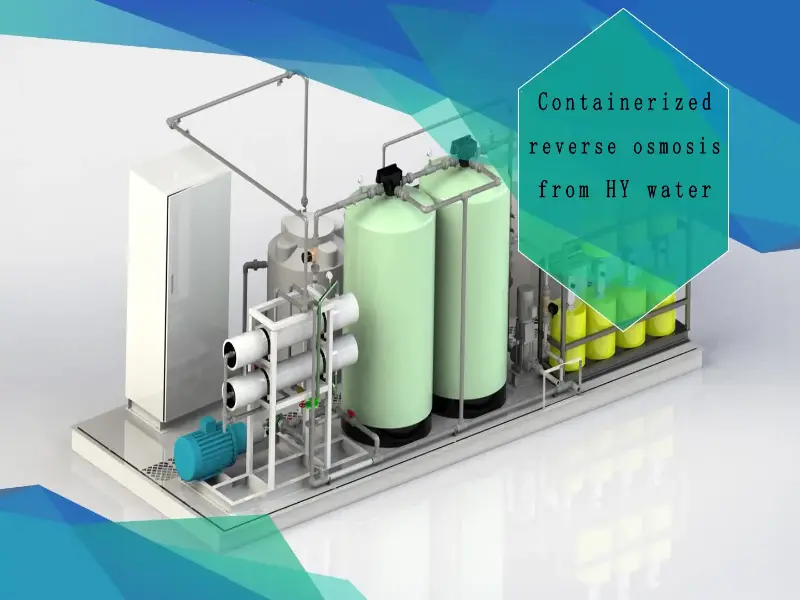

（The photo of Mobile water purification system）
B. Mobile water purification system process flow
Raw water tank → Feed water pump → Sands filter → (Actived carben filter)→Scale inhibition →5μ Security filters →→1μSecurity filter→ High pressure pump → RO system (CIP) → RO water tank
- Mobile water purification system stage introduction
- Feed water pump– provide the pressure to quartz sand filter/active carbon filter.
- Sands filter–get rid of turbidity, suspended matter, organic matter, colloid, ect.
- 5μ Security filters –prevent large particles, bacteria, viruses into RO membrane, accuracy 5μm
- 1μm Security filter– Prevent large particles, bacteria, viruses into RO membrane, accuracy 1μm
- High pressure pump–Provide the high pressure to RO membrane ro.
- RO system– main part of the plant. The RO membrane’s desalting rate can reach 99%, removing over 99% ions.
2.Mobile water purification system product feature
1.Mobile water purification system use automatic control and semi-control .Pretreatment parts can adopt fiber glass or stainless steel material.
2.Mobile water purifcation system has protected when no power, poor power, larger electrical current, leakage, short circuit.
3.Mobile water purifcation system desalination plant purification machines is compact, easy installation.
4.Mobile water purifcation system equipped with PLC and touch screen control and remote login .(Siemens PLC and Touch screen or Mitsubish PLC and tourch) This parts is optional.
5.Mobile water purifcation system purification machines produce as per ISO and SGS standard and main parts accessories have obtained CE certification.
6 .Haiyuan water factory has more than 10 years production experience.
7 .Can supply overseas for installation and commissioning.
We have more sizes and output water capacity for your choice:
| Model | Output Capacity (m³/day) | Electro-consumption/ton(Kwh/T) | Dimensions(Vertical Ro host)L*W*H(mm) |
| HY-RO-070 | 70 | 4 | 1700*1000*1700 |
| HY-RO-100 | 100 | 4 | |
| Greater than 100 tons per day with energy recovery system. American ERI,35%~40% energy savings | |||
| HY-RO-200 | 200 | 3.8 | 4000*2000*2000(RO Host) |
| HY-RO-500 | 500 | 3.8 | 7000*2000*2000(RO Host) |
| HY-RO-600 | 600 | 3.8 | 7000*2000*2000(RO Host) |
| HY-RO-800 | 800 | 3.8 | 7000*2000*2200(RO Host) |
| HY-RO-1000 | 1000 | 3.8 | 7000*2000*2200(RO Host) |
| HY-RO-5000 | 5000 | 3.5 | ———————– |
In order to send you correct information please tell me below information
- How many liters outlet water per hour do you require? (1000L/H,to 10m3/hr, etc.)
- Where is the source water from? (Eg: well water/borehole water, river water. etc.)- Do you have water analysis result or know the water quality? (The TDS=total dissolved solid, Fe, Mg, Hardness etc. whether over proof etc).
- After treated, the water meet WHO drinking water standard, or as per bottle water standard or other industrial purpose?
- Your local power is 380V/50hz 3phase or 380V/60Hz 3 phase, 440/60hz 3 phase or other voltage?
BTW: If source water is Municipal tap water or clean reservoir water or spring water no need report. But please inform us the water characteristic.
Please contact us!
Email:Tiana@swroplant.com
Mob&WhatsApp&WhatChat: +86 13798883773, +8613532836525
Mobile water purifcation system based on different capacity and treated water standard or purpose. we will supply the Optimization solution for client.
