Marine water maker 1000LPH for boat

Advanced technology is utilized by HY Factory’s Marine water maker for boat to eliminate salts and impurities and guarantee high-quality water. The efficient and reliable nature of this automated system makes it suitable for various water sources and operational environments.

Marine water maker 1000L/H for boat

Machine Introduction:

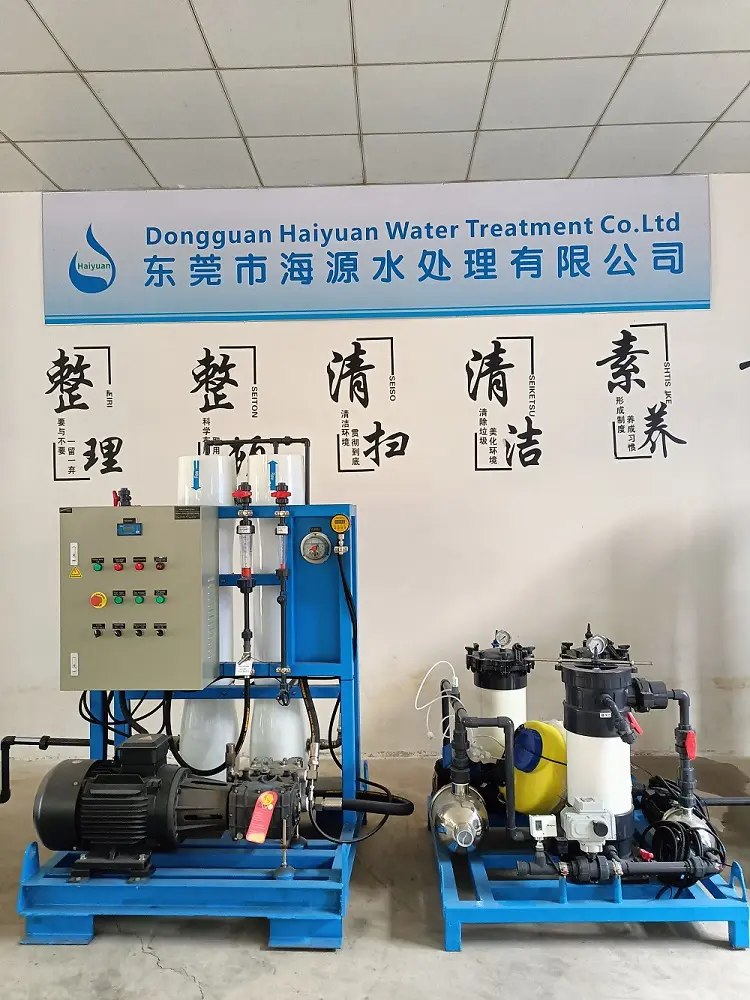

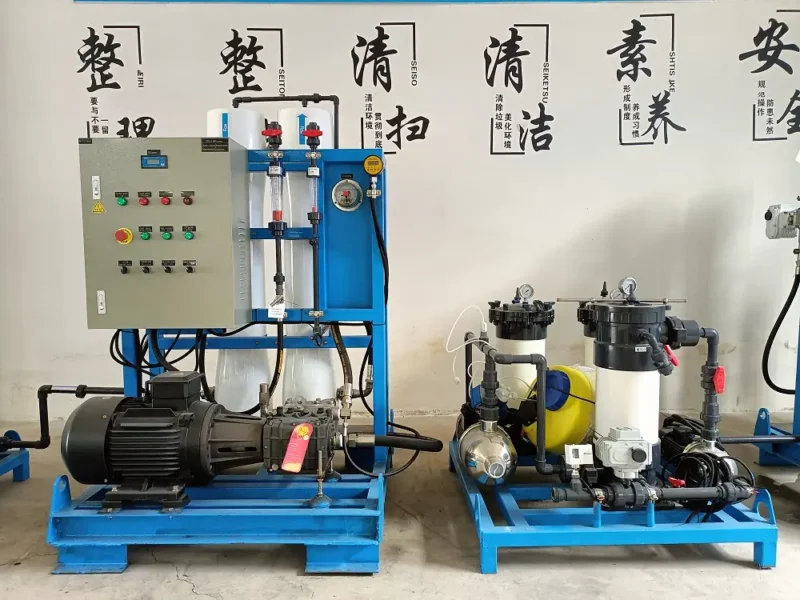

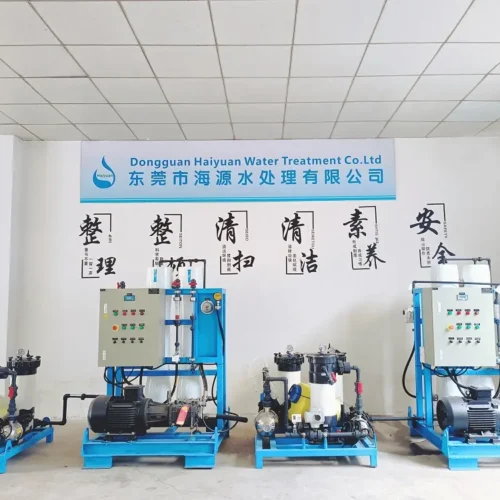

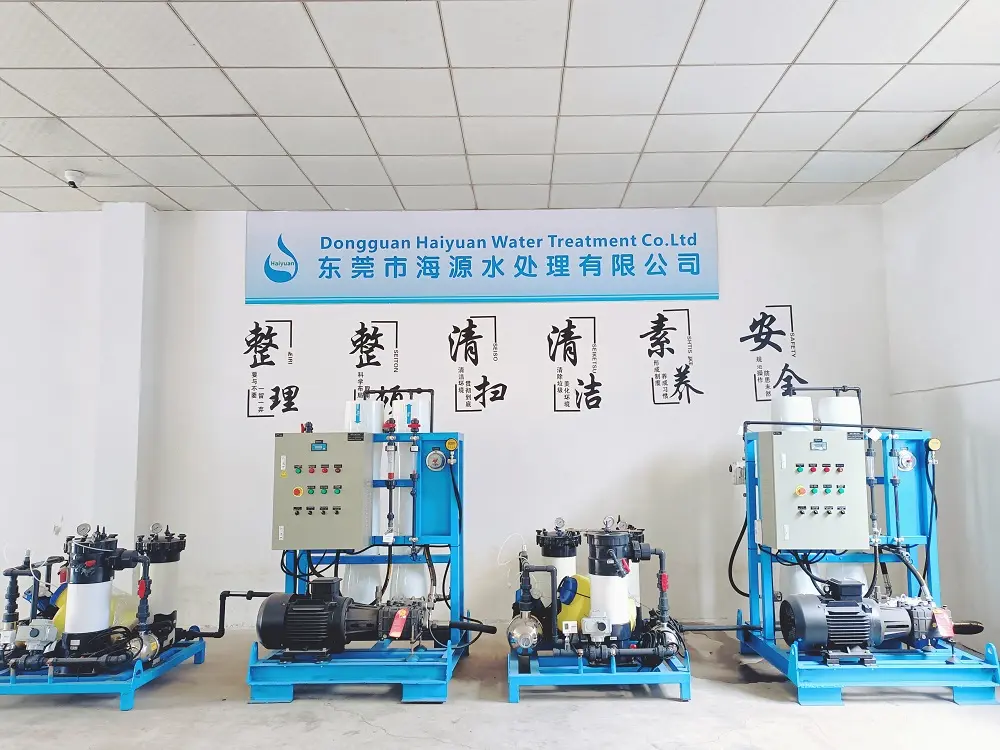

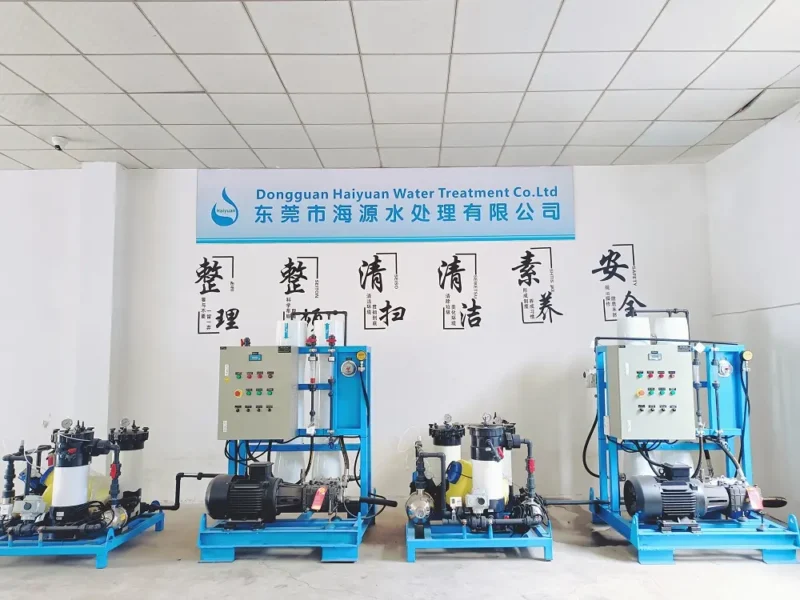

These are two sets of 20 cubic meters per day marine water maker, which are provided to two ships produced by Oman and Turkey shipyards, and can treat seawater into drinking water.
Due to the size limit of the vessel’s cabin entrance, we divided the pre-filtration part and RO part into two parts.
The pre-filtration part is consists of a bag filter, a 5-micron filter, and a 1-micron filter, which are installed on a skid-mounted frame.
The RO part is consists of a high-pressure pump and two 8040 reverse osmosis membranes and membrane housings and control panel, which are installed on another skid-mounted frame.
The shell and low-pressure pipes of the pre-filtration part are made of corrosion-resistant UPVC. The high pressure part is made of SUS316L.
The whole set of equipment is compact, which is suitable to use on ship or in places with relatively small space.

Role and Function:

Providing Fresh Water: The primary function of a marine water maker for a boat is to produce fresh water from seawater. This is essential for the daily operation and living needs of people on board, as fresh water is crucial for drinking, cooking, cleaning, and other activities.
Ensuring Water Safety: The desalination process removes salt, impurities, and potential contaminants from seawater, ensuring that the produced water is safe for human consumption.
Increasing Self-Sufficiency: By having a desalination plant on board, boats or ships can become more self-sufficient in terms of water supply, reducing the need to rely on external sources.

HY-SWRO-1000L/hr (20m3/D)
Flow rate	20000L/day	Recovery rate	/
Applicable power	440V/60hz 3 phase	Rated power	6.6-8KW
Feedwater TDS	≤35000ppm	freshwater TDS	300-500ppm
Working pressure	60 bar	operating temperature	5-45℃
Feedwater residual chlorine	<0.1ppm	Feedwater SDI	<5
Feedwater turbidity	<1NTU	Feedwater PH value	3-10 NTU
RO membrane housing	8040-1 core,2pieces	RO membrane	2 pieces
Pre_filter size	1.5×1.1×1(m) LWH	Net weight	/
RO part size	1.5×1.1×1.85(m) LWH	Gross weight	/

Marine water maker inquiry guides
To find the most appropriate for your use, please advise the following information ready
· Product water flow rate ( m3/hr, m3/day, Liter/hr,GPM,GPD etc.)
·Product water purpose(drinking, irrigation, industry process or others)
· Feed Water TDS (Total dissolved solids). Is it from Borehole/salt/brackish/lake water
· Power (110/220/380V/415V/460V, 50 or 60 Hz) 3 phase.
· It is necessary to make water analysis reprot for borehole water,lake water, seawater.
If soure water is tap water no need end to us TDS or water analysis report.

Quickly discuss and reply you. My whatsapp +86 13798883773, +8613532836525
