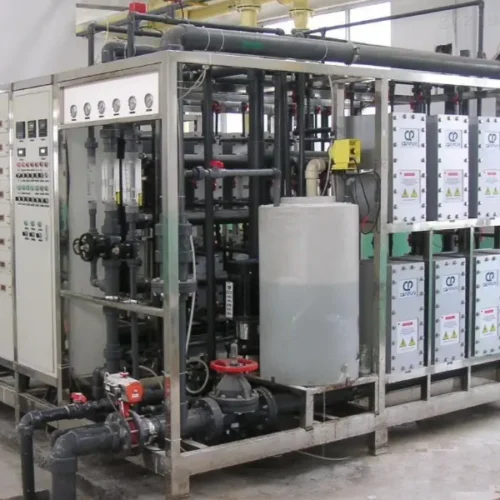

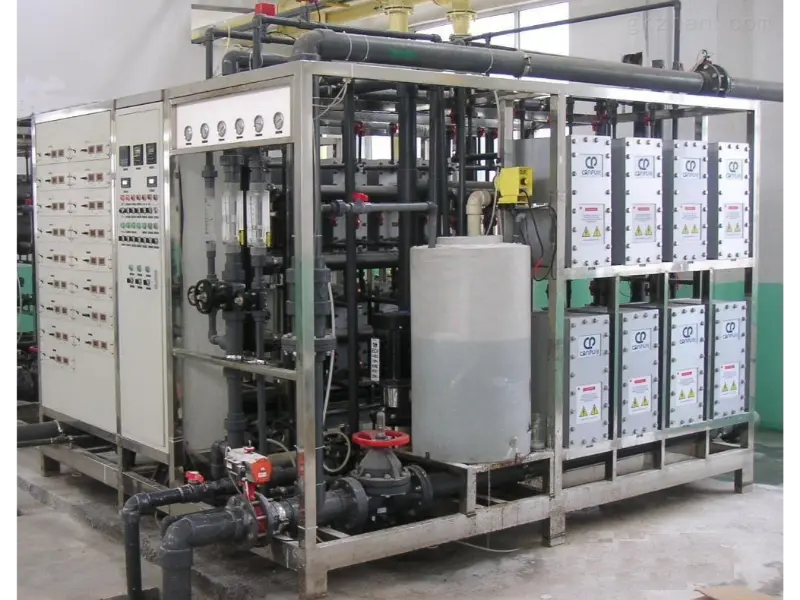

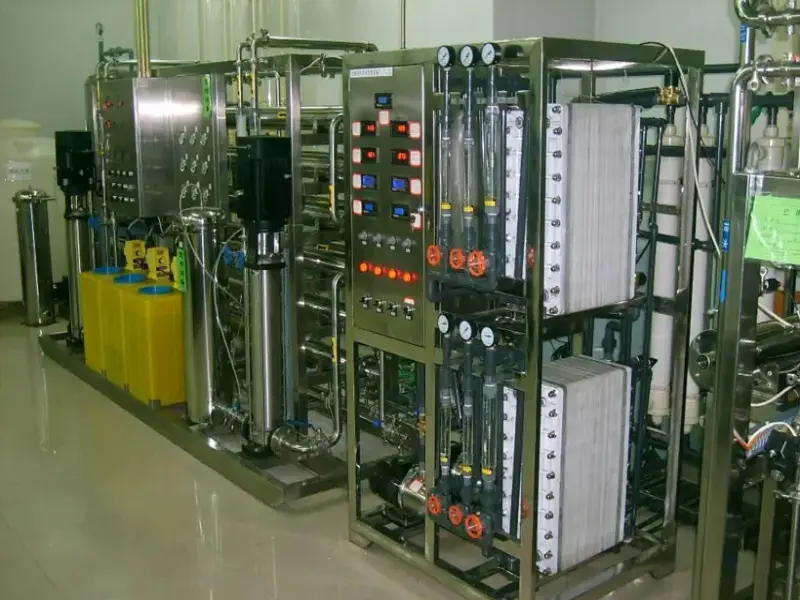

Edi water treatment electrodeionization system
A.Edi water treatment electrodeionization system introduction
Source water quality analysis report: Feed water TDS ≤2000 PPM.
Source water: underground water
Output pure water quality can reach as follow
B.Edi water treatment electrodeionization system product feature
One-stage RO water treatment, Permeate adopt sand& carbon filter.
Bacteria& endotoxin removable rate: 99.8%.
Ion removal rate: 99.5%. RO Recovery rate: 80%,EDI recovery rate:90%.
EDI system can more deep remove the conductive ions reach user’s water standards.
C.Edi water treatment electrodeionization system control method
Whole system use Mitsubish PLC full automatically control model, both model can be exchanged accordingly. Sand&Carbon filter with auto and manual back flush.The RO system automatic flushing at each startup and shutdown. High water level auto stop, low water level auto start. Pump protected without water. Protected when no power, poor power, larger electrical current, leakage, short circuit.Two pumps, one for backup(when another fault). Warning Voice alarms when anomalous water level/pressure.
D.Edi water treatment electrodeionization system process flow
Raw tank →Feed water pump →Sands filter → Active carbon filter →Security filter→1st stage → High-pressure pump →1st stage RO system→PH adjust system →1st stage RO water tank→2nd stage high-pressure pump→2nd stage RO system→2nd RO water tank→EDI booster pump → EDI system →EDI product tank →outlet water
E.Edi water treatment electrodeionization system whole process introduction
1.Sucking water pump
Function：Provide power for the pretreatment system’s normal work, with high overheat protector, pressure controller. Failure alarm.
2.Micron filter
Remove more tiny impurities, prevent resin leakage, effective protect RO membrane.
Features： SS-304 material
3.RO System
Function：Provide power for the RO membrane normal work, with high overheat protector, pressure controller. Failure alarm.
Function：Buffer for entering RO
pressure controller. Failure alarm.
4.RO tank
Store the RO production water for future use. (User prepare)
5.EDI Feed water pump
Function：Provide power for the EDI system’s normal work, with high overheat protector, pressure controller. Failure alarm.
6.Edi water treatment electrodeionization system
Inquiry Guides
To find the most appropriate for your use, please advise the following information ready
· Product water flow rate ( m3/hr, m3/day, Liter/hr,GPM,GPD etc.)
·Product water purpose(drinking, irrigation, industry process or others)
· Feed Water TDS (Total dissolved solids). Is it from Borehole/salt/brackish/lake water
· Power (110/220/380V/415V/460V, 50 or 60 Hz) 3 phase.
· It is necessary to make water analysis reprot for borehole water,lake water, seawater.
· If soure water is tap water no need water analysis report.
