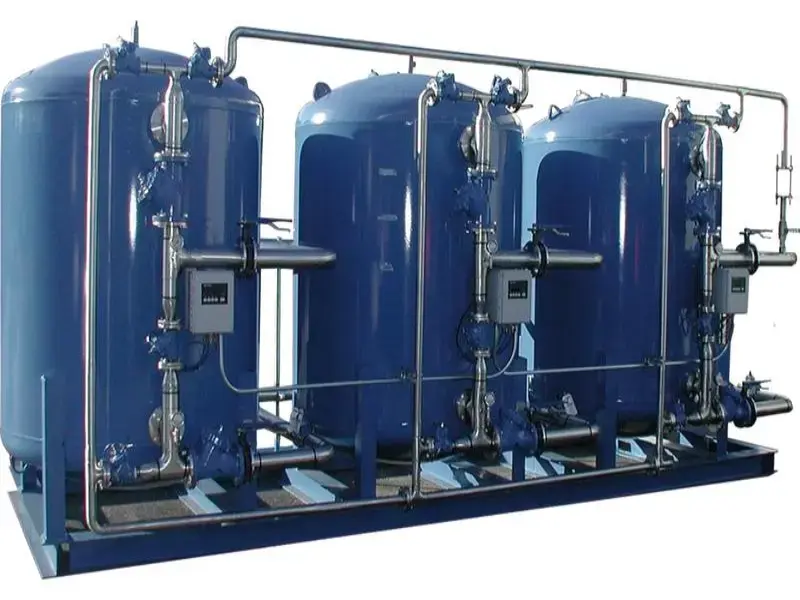

DM demineralized water system
Detail introduction of DM demineralized water system
1.Storage /Source /Raw tank(User prepare)
With high, low water level control. Regulate water supply to the pre-treatment, prevent the effects of water insufficient, effective protect the work of booster pump.
2. Feed water pump—Provide power for the sand & active carbon filter and RO system.
2. Sand filter— remove the turbid and other suspended particles.
3. Anion resin filter remove the water Anionic
4. Cation resin filter remove the water anion
Process flow of DM demineralized water system
1st process: Source water tank →Feed water pump → Muti- media filter → Active carbon filter(Option) → Anion resin filter→Cation resin filter→product tank.
2nd process: Source water tank →Feed water pump → Muti- media filter → Active carbon filter(Option) → Anion resin filter→Cation resin filter→product tank→Mix bed feed water pump →Ion exchange mix bed →Filter→Product water.
Above is process based on the source water quality and output water quality.
Product detail of 10,000L/hr DM demineralized water system
| NO. | Items | Specification | Unit | Qty | Remark |
| 1 | Source tank | 7M3 | set | 1 | User prepare |
| 2 | Fed water pump | CHL12-40/2.4KW | set | 1 | SS304/CNP |
| 3 | Quartz sand filter | 750*1800 | set | 1 | Fiberglass |
| Quartz sand | Size: 8-16mm.6-8mm,2-4mm. | kg | 1200 | HY | |
| Manual control value | ф50 | Piece | 5 | UPVC | |
| 4 | Anion resin filter | Φ600*1800-2472 | set | 1 | Fiberglass |
| Anion resin | 001*7 | liter | 300L | ZHENGGUAN/CHINA | |
| Manual control valve |
ф50 | set | 1 | UPVC | |
| 5 | Cation resin filter | Φ600*1800-2472 | set | 1 | Fiberglass |
| Cation resin | 201*7 | liter | 300L | ZHENGGUAN/CHINA | |
| Manual control valve |
ф50 | set | 1 | UPVC | |
| 6 | Piping work | ф50 | set | 1 | UPVC |
| 12 | Electric cabinet&instruments | AC contactor etc.
2 water level switch. 2 piece Pressure meter 1 flow meter |
set | 1 | HY |
According to customers’ water source analysis report and the final water standard required ,we will design the suitable demineralized DM water plant for client.
For more information on our available demineralized DM water system polishing and regeneration technologies,contact us now get quotation.
Inquiry Guides
To find the most appropriate for your use, please advise the following information ready
· Product water flow rate ( m3/hr, m3/day, Liter/hr,GPM,GPD etc.)
·Product water purpose(drinking, irrigation, industry process or others)
· Feed Water TDS (Total dissolved solids). Is it from Borehole/salt/brackish/lake water
· Power (110/220/380V/415V/460V, 50 or 60 Hz) 3 phase.
· It is necessary to make water analysis reprot for borehole water,lake water, seawater.
· If soure water is tap water no need water analysis report.
