Desal plants sea water desalination plant

Desal plants sea water desalination plants designed by HY factory, convert seawater into drinking water through processes like reverse osmosis. Utilizing advanced technology, desal plants sea water desalination plant ensure high energy efficiency, low chemical consumption, and reliable performance. They are often housed in compact, modular units for easy installation and maintenance. With durable materials like stainless steel, these plants are built to withstand harsh marine environments, delivering consistent and safe water supply.

Desal plants sea water desalination plant

A. Sea Water Desalination Plant

B.Desal plants, specifically sea water desalination plants, convert seawater into potable water. These plants are available in different production capacities, ranging from 1T/day to 10,000T/day.

C.Main Desal plants sea water desalination plant parameters

– TDS (assumed): <35000 mg/l (ppm)
– Recovery rate: 35%-50%
– pH : 2-11
– Turbidity: 5 NTU
– Free chlorine: <0.1 ppm
– Water temperature range: 5.0-30.0℃
– Output water quality: <500 mg/l (ppm), meeting WHO drinking water standards

Desalination Plant Flow Process

1. seawater tank
2. Feed water pump
3. Sand filter
4. Precision filter
5. High-pressure/Centrifugal pump
6. SW Reverse Osmosis system
7. sterilizer
8. Tank

swro_seawater_desalination_plant_HY swro_seawater_desalination_machine

D. Desal plants sea water desalination plant product list:

HY-SWRO-8~9m3/hr(200m3/D) ro seawater desalination plant
Flow rate	160T/day	Recovery rate	45%
Applicable power	380V/50HZ 3 phase	Rated power	53KW
Feedwater TDS	<45000ppm	freshwater TDS	<600ppm
Working pressure	<6Mpa	operating temperature	5-45℃
Feedwater residual chlorine	<0.1ppm	Feedwater SDI	<5
Feedwater turbidity	<1NTU	Feedwater PH value	3-10
RO membrane housing	8040-5 core,3piece	RO membrane	15 piece
Equipment specification	6X1.2X1.65(m)	Net weight	1500Kg
Packing specification(Plywood)	6.1X1.3X1.68(m)	Gross weight	1800Kg

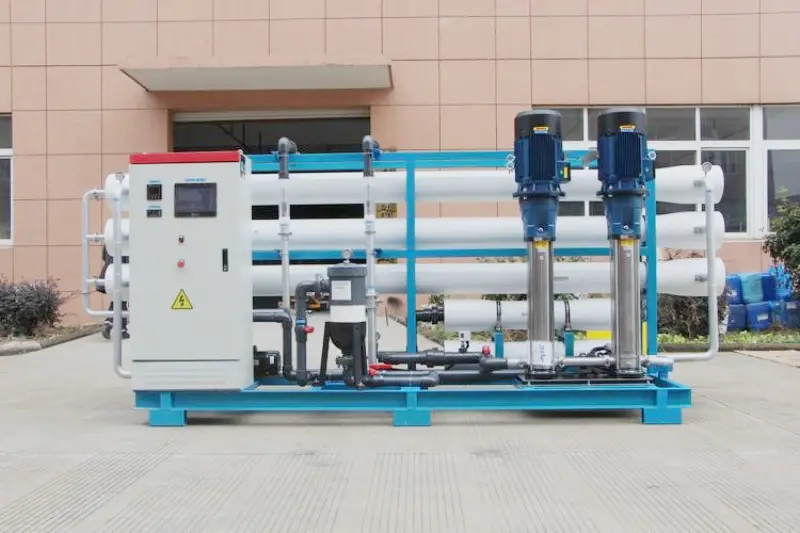

10m3/d watermaker desalinator

E.Desal plants sea water desalination plant Standard Features

(1).Automatic inlet shut-off valve ,Perform cleaning at regular intervals without human intervention

(2).two flow meters,Digital display flow

(3).Online monitoring conductivity meter to determine whether the water quality meets the requirements.
(4).Programmable PLC controller, Easy operation ,one button can achieve the control on water produce and stop.

(5).RO membranes manual wash with medicine

(6).Pure water high water level auto stop,low water auto start

(7).Multi-phases pump protected without water

(8).Protected when no power,poor power,larger electrical current,short circuit,Creepage of electricity.

(9).Combined system,easily install and maintain

(10).Environmental Friendly,The movement and service cost is low

(11).Which can realize the area is small

(12).The water quality has the best stability

(13).Support customization, welcome to email to discuss order

sea water desalination plant more related to information (different source water, capacity, voltage), please feel free to contact us!
