Deionized ro di water system deionizer
A: DI Deionized water system description
Deionized water: Deionized water is prepared by non-heat treatment using ion exchange method, reverse osmosis method, mixed bed method, and EDI electric desalination method. That is, deionized water refers to pure water after removing impurities in the form of ions. Deionized water is commonly referred to as “ultra-pure water” or “18 megohm water” in the semiconductor industry.
B: Deionized water system normally parameters
- WHO water or Brackish water :TDS <500
- Out water: Resistivity ≥10MΩ.cm
- Operating Pressure: < 30 psi
- Maximum Recovery: 98% – 100%
- Desalination rate: 99%
- Operating Temperature: 5-35 ºC
- Minimum Inlet Pressure: 30 psi
- Design Temperature: 25 ºC
C:Deionized water system processe flow
Raw water → Multi-media filter → Activated carbon filter → Precision filter → Reverse osmosis equipment → Electric deionization (EDI) → Deionized water tank → Deionized water pump → Rear security filter → Water point
At present, the processes of DI water plant mainly include the following:
1) Reverse osmosis;
2) Reverse osmosis + mixed bed ion exchange
3)Reverse osmosis + Double bed(cation resin+anion resin)
3) Reverse osmosis + EDI
4) Multiple beds + mixed bed ion exchange
Above four difference deionized water unit and the price will be the difference

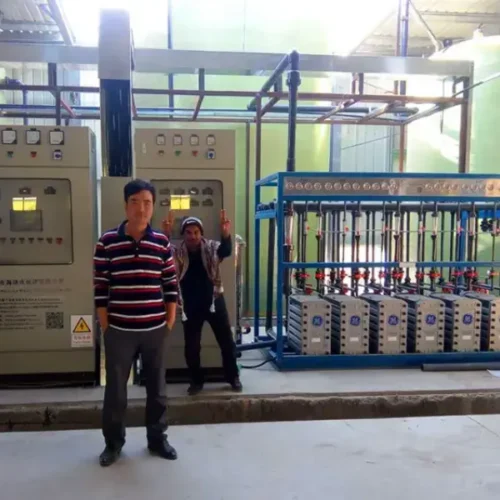

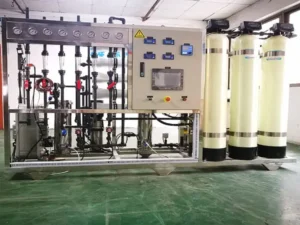

D: Example :Deionized water system configuration list 1000L/hr and 50m3/hr ro EDI deionized water system photo
Why need to provide the source water quality report?
1.The source water quality report can help engineers better understand the parameters of various indicators n the raw water, like the amount of all kinds of ions, bacteria, etc. Provide feasibility solution based on various parameter of raw water.
2. TDS(Total dissolved solid) and residual chlorine value is very import. before designing the proposal, engineers select high different pressure pumps with different pressures based on TDS value to make sure that the system can produce the clean water normally. Select the appropriate stainless steel material based on the residual chlorine to avoid the water leakage caused by corrosion.
3.From water analysis report can see the iron and manganese, turbidity, bacteria whether exceed the standard. Engineers can design the process flow chart and solution which best fit the demand to help reduce unnecessary expense which can help customers save the cost.
4. Engineers design the deionized water system suitable proposal based on raw water quality report and product water purpose/standard which can operate normally and best fit the customer demand.
BTW: If source water is Municipal tap water or clean reservoir water no need report.
But please inform us the water characteristic.
Deionized water filter custom process based on the output water quality and user requirements.
Please contact us get free design proposal.
