Containerized reverse osmosis system
Source water: direct seawater or drill salt water, borehole water
Purpose: For drinking water, irrigation, or other industrial processes purpose.
Why choose a containerized reverse osmosis system ro system?
Containerized reverse osmosis sysem have many advantages over built-in plant room installations:
· Plug and play unit
· Quick installation
· Limited civil work (only container foundation)
· Small foot print
· Easy transportation
· Mobile: useful for construction sites
· Turnkey delivery: piping, cables, air conditioning
Containerized reverse osmosis system ro system feature：

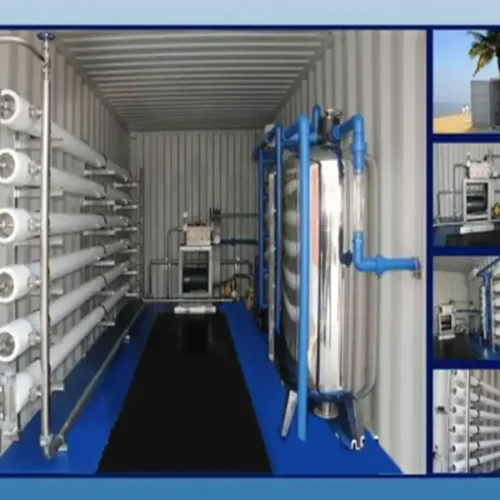

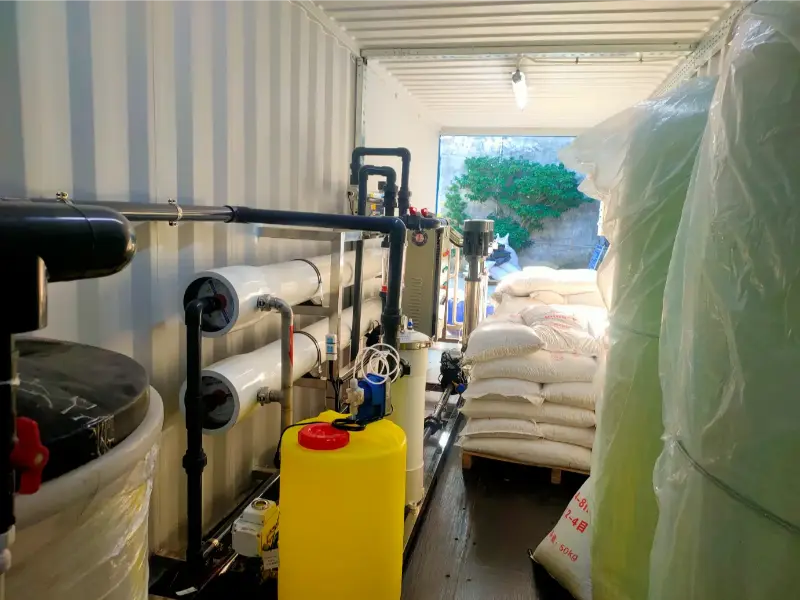

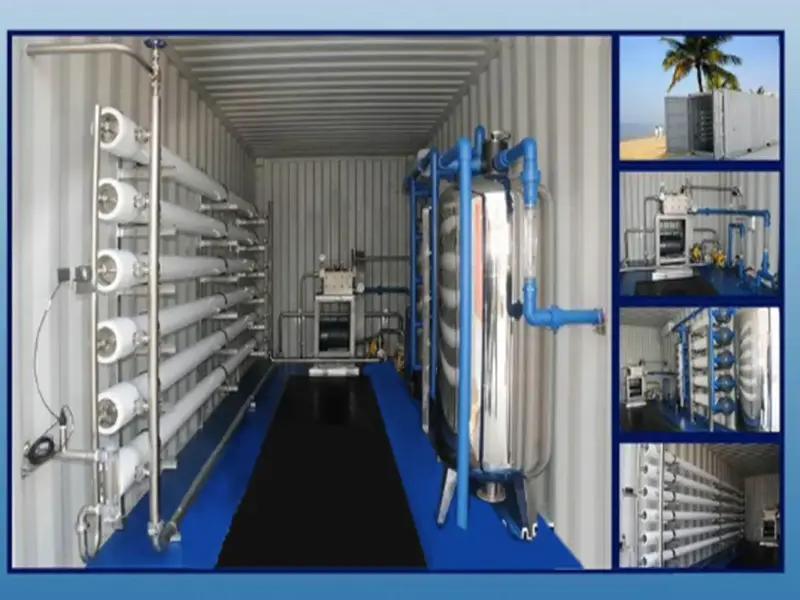

Desalination reverse osmosis sysem in insulated (20 or 40 ft) containers. Containerization includes all piping and fittings connected, all cables and wires connected to instrument and control cabinet. This is a “plug and play” desalination system supply.
The containerized ro sysem will be mounted with one side door, one inlet/outlet (terminal point), one side door and floor drainage.
The container can be air cooled on request. The Air condition is a split-unit and the outdoor part will be placed next to the container.
Haiyuan provides all kinds of pre-treatment required before SWRO, according to source water analysis and process requirements.
Containerized reverse osmosis system ro system Size / Standard
Depending on the plant size, containerized plant in 20 or 40 ft container(s) are available.
| Below is 20GP container capacity paramete | |||||
| Model | Membrane model*qty | Capacity m3/D | Weight/kg | Operating Pressure/Mpa | Power |
| HYSW-20GP-20 | 4040×8 | 20 | 2800 | 4.0-6.5 | 220V-440V/
50Hz-60Hz |
| HYSW-20GP-26 | 4040×10 | 26 | 2860 | 4.0-6.5 | |
| HYSW-20GP-30 | 4040×12 | 30 | 2920 | 4.0-6.5 | |
| HYSW-20GP-40 | 4040×16 | 40 | 3030 | 4.0-6.5 | |
| 20GP Container-frame: 20 ft according to ISO- standard (5.85×2.23×2.15 meter). |
|||||
| · suit for long-distance transport
· easy installation · save space for customers More detail need customized according user requirement. |
|||||
| Below is 40HGP container capacity paramete | |||||
| Model | Membrane model*qty | Capacity m3/D | Weight/kg | Operating Pressure/Mpa | Power |
| HYSW-40HGP-60 | 8040×6 | 60 | 4900 | 4.0-6.5 | 380V-440V
/50Hz-60Hz |
| HYSW-40HGP-80 | 8040×8 | 80 | 5050 | 4.0-6.5 | |
| HYSW-40HGP-100 | 8040×10 | 100 | 5150 | 4.0-6.5 | |
| HYSW-40HGP-120 | 8040×12 | 120 | 5230 | 4.0-6.5 | |
| HYSW-40HGP-150 | 8040×16 | 150 | 5530 | 4.0-6.5 | |
| Container-frame: 40 ft according to ISO- standard (12,4 x 2,4 x 2,8 meter). |
|||||
| · suit for long-distance transport
· easy installation · save space for customers More detail need customized according user requirement. |
|||||
Containerized reverse osmosis system ro system key Instrumentation
1. TDS meter (RO feed, Fresh water)
2. ORP (RO feed)
3. pH (RO feed, Fresh water)
4. Pressure sensor (UF feed, Fresh water)
5. Flow meter (UF feed, RO feed, Fresh water, RO brine)
6. Pressure switch (RO feed, Fresh water)
7. Float switch for feed water and fresh water
Haiyuan except are good at produce Containerized reverse osmosis system ro system,But also the other type seawater desalination plant system is also our company are good at.
More seawater desalination machine plant system please contact us:
Please add Wechat/Whatapp +86 13798883773, +8613532836525
Or send Email: Tiana@swroplant.com
