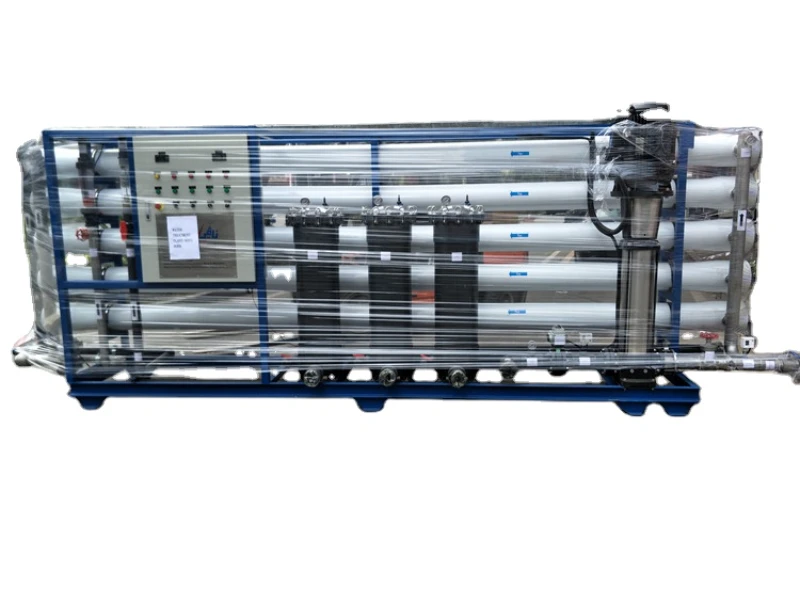

Bwro brackish water reverse osmosis ro system

A.Bwro brackish water reverse osmosis ro system Introduction

a.Source water: Well water analysis report TDS 7000ppm.

b. Reverse osmosis system working Voltage/Power: 415V/50HZ 3phase 19KW

c. Outlet Purified water standard: output water TDS100PPM

e. Plant size: L10*W1.5*H2.1m

Each part function of the drinking water purification system

S/N.	Commodity name	Application	Remark
1	Raw water tank	Store water, buffering pressure, overcome instability of supplying water by pipe, ensure to supply water stably and continuously for whole system	Customer provide for themselves, because big size will result in expensive freight.
2	Raw water pump or called booster pump (feed water pump)	Provide needed pressure for every pretreatment filter	We can provide CNP pumps
3	Mechanical filter or called quartz sand filter or sand filter	We use fiber glass or stainless steel vessel as housing, fill quarts sand, it can filter big particles impurities, suspended substances, colloids etc.	We use China brand or WAVE CYBER brand
4	Activated carbon filter	We use fiber glass or stainless steel vessel as housing, fill activated carbon, remove color, odor, residual chlorine and organics substances.	We use China brand or WAVE CYBER brand
5	Water softener, demineralizer, or called Na+ exchanger	Adopt cation resin to soften water, cation resin will absorb Ca2+, Mg2+(main elements for composing scale), reduce hardness of raw water, System can make resin intelligently regenerate, recycling	We use China brand or WAVE CYBER brand
6	Antiscalant dosing system or PH regulating system	Dosing antiscalant into feed water, prevent the ro membranes from blocking, prolong the lifetime of RO membranes. Regulating PH to suitable range.	Italy SEKO dosing pump or German Prominent
7	Security filter or pp filter, or called PP sediment filter	prevent large particles, bacteria, viruses into RO membrane, accuracy is 5µm	Stainless steel housing or PVC housing
8	High pressure pump	Provide needed working pressure for RO system, ensure production capacity of pure water.	CNP pump
9	RO(reverse osmosis) system	Can remove particles, colloids, organic impurities, heavy metal ions, bacteria, virus, heat source etc. harmful substances and 99% dissolved salts.	RO membranes USA Filmtec Dow
10	CIP cleaning system	Cleaning RO membranes with chemicals	CNP pumps
11	Sterilizing device	UV sterilizer or ozone generator	BNP ozone
			machine, USA
			Hanovia UV bulb

B.Bwro brackish water reverse osmosis ro system HY control method

Whole system use full/semi automatically control model, both model can be exchanged accordingly. Sand filter and Carbon filter with auto and manual back flush.The RO system automatic flushing at each startup and shutdown. High water level auto stop, low water level auto start.Pump protected without water.

Protected when no power, poor power, larger electrical current, leakage, short circuit.

C. Bwro brackish water reverse osmosis ro system HY process flow

Feed water tank—Feed water pump—Sand filter—Active carbon filter—Dosing system—Cartridge filter—High pressure pump—reverse osmosis system—RO water tank.

To find the most appropriate for your use, please advise the following information ready
· Product water flow rate ( m3/hr, m3/day, Liter/hr,GPM,GPD etc.)
·Product water purpose(drinking, irrigation, industry process or others)
· Feed Water TDS (Total dissolved solids). Is it from Borehole/salt/brackish/lake water
· Power (110/220/380V/415V/460V, 50 or 60 Hz) 3 phase.
·  It is necessary to make water analysis reprot for borehole water,lake water, seawater.
·  If soure water is tap water no need end to us TDS or water analysis report.
