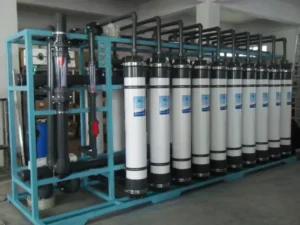

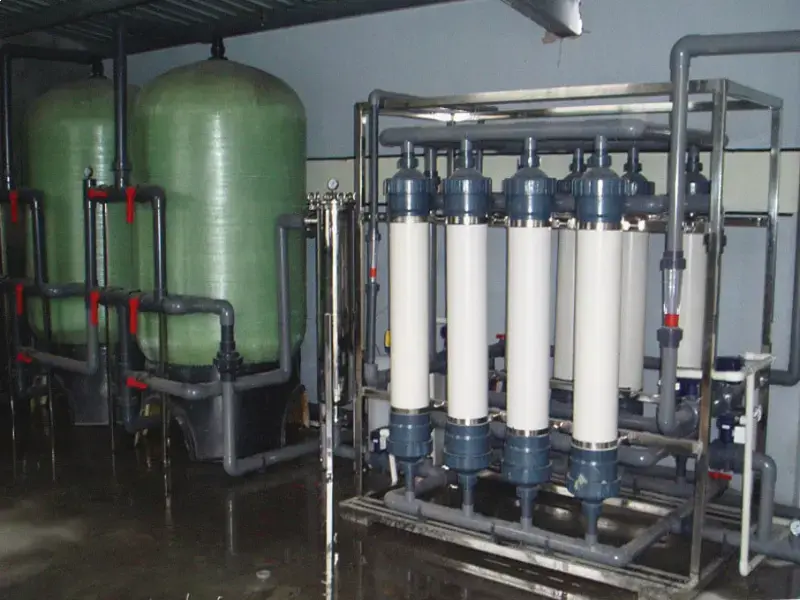

Ultrafiltration skid ultrafiltration machine design as flows：
The river water has been treated with sand carbon. But there is still a slight light yellow turbidity. After communication, the customer does not want to use sand carbon anymore, but wants to use UF directly.
Source water: Pre-filtered river water
Output pure water quality can reach Client indicted drinking requirement.
Water temperature：2—35℃
production capacity: 100m3/hr
Voltage and Frequency: 380V/50Hz 3 phase, 11KW
Recovery rate:90%
Ultrafiltration skid ultrafiltration machine details: (river water)
| HY-UF 100m3/hr | |||
| Flow rate | 100m3/day | Recovery rate | 90% |
| Applicable power | 380V/50HZ 3 phase | Rated power | 11KW |
| Working pressure | <0.3-035Mpa | operating temperature | 5-45℃ |
| Feedwater residual chlorine | <0.1ppm | Feedwater SDI | <5 |
| Feedwater turbidity | <1NTU | Feedwater PH value | 5-7 |
| UF membrane | 20 piece | Bag filter | 11 # |
| Packing specification(Plywood) | Need to 40ft container | Gross weight | / |
| Equipment with backish wash pump and CIP pump with CIP filter
Oprtion PLC and HMI Brand: Mitsubishi, WEINVIEW. Siemens. Option pump brand: NP or Grudnfos pump Our conments: NP and vontron membrane have good price and nice quality. |
|||
Ultrafiltration skid ultrafiltration machine inquiry guides
To find the most appropriate for your use, please advise the following information ready
· Product water flow rate ( m3/hr, m3/day, Liter/hr,GPM,GPD etc.)
·Product water purpose(drinking, irrigation, industry process or others)
· Feed Water TDS (Total dissolved solids). Is it from Borehole/salt/brackish/lake water
· Power (110/220/380V/415V/460V, 50 or 60 Hz) 3 phase.
· It is necessary to make water analysis reprot for borehole water,lake water, seawater.
· If soure water is tap water no need end to us TDS or water analysis report.
Quickly discuss and reply you. My whatsapp +86 13798883773, +8613532836525
