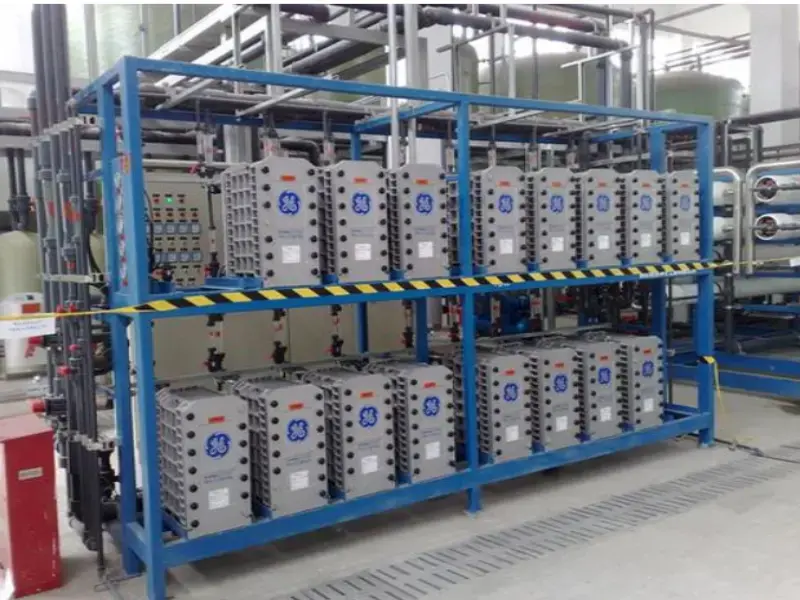

Electrodeionization (EDI) ro system process :

Electrodeionization (EDI):

Overview: EDI is an advanced water purification process that combines ion exchange resins with electricity to remove ionized and ionizable species from water.

Ion Exchange Resins: Water flows through a series of cation and anion exchange resins that capture dissolved ions.

Electric Current: An applied electric field continuously regenerates the resins by driving captured ions out of the resin and into a waste stream.

Membranes: Selective membranes allow only certain ions to pass, further purifying the water.

Continuous Operation: Unlike traditional ion exchange systems, EDI does not require chemical regeneration, making it a more sustainable option.

 RO EDI system applications:

Pharmaceutical Industry:

Use: Production of ultrapure water for drug formulation and equipment cleaning.

Reason: EDI ensures the highest purity levels without introducing chemical contaminants.

Electronics and Semiconductor Manufacturing:

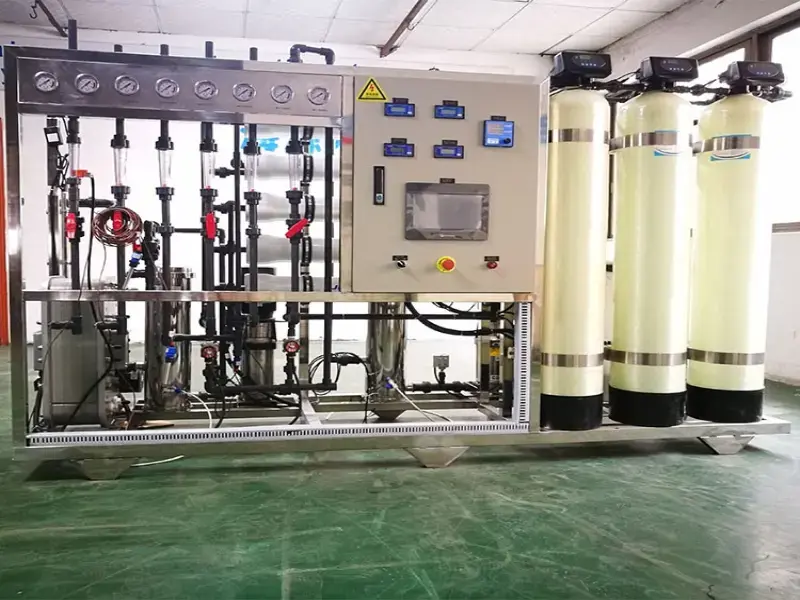

Source water tank → Feed pump→ Sand filter → Carbon filter → Softener →1st RO skid →Middle water tank → EDI device →DI water



Below is wer done other USA client drawing the ro edi water system flow chart.

Raw water/Application	Industry use	Industry use	Industry use
	(1st level)	(2nd level)	(3rd level)
TDS Range	Conductivity Range: 1–0.1 uS/cm	Resitivity Range: 1—-10MΩ/cm	Resitivity Range: 10—-15MΩ/cm
Direct Drinking
Cooking, human			Or more higher: 18 MΩ/cm
consumption, washing
Irrigation, Industry,
Animal Drinking







Haiyuan are professional assembly, production, commissioning EDI system for 13 years. With CE, SGS, ISO certification. The Quality and Service as our culture.

We do business with North America, Sourth America, ,The Middle East, Southeast Asia business ,very familiar with  different water quality process.

 Deionized（DI）water system water deionizer inquiry guides

To find the most appropriate for your use, please advise the following information ready
· Product water flow rate ( m3/hr, m3/day, Liter/hr,GPM,GPD etc.)
·Product water purpose(drinking, irrigation, industry process or others)
· Feed Water TDS (Total dissolved solids). Is it from Borehole/salt/brackish/lake water
· Power (110/220/380V/415V/460V, 50 or 60 Hz) 3 phase.
·  It is necessary to make water analysis reprot for borehole water,lake water, seawater.
·  If soure water is tap water no need end to us TDS or water analysis report.

Quickly discuss and reply you. My whatsapp +86 13798883773, +8613532836525
