Reverse osmosis seawater desalination system 250LPH–Papua New Guinea
Reverse osmosis seawater desalination Introduction:

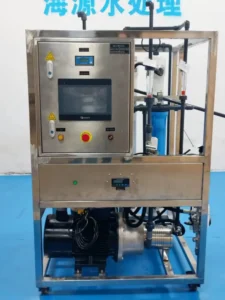

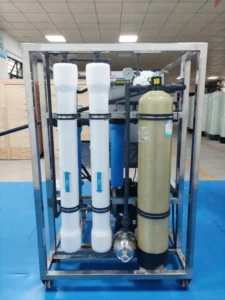

Welcome to our 250LPH marine desalination system. This innovative system is designed to convert seawater into fresh, potable water efficiently. It comprises key components such as a control panel, raw water pump, sand filter, precision instruments, high-pressure pump, RO membrane, and flow meter.
Reverse osmosis seawater desalination system Components and Design:
To prioritize user convenience, we’ve integrated a touchscreen control panel into the system. This intuitive interface streamlines operation and real-time monitoring, ensuring effortless management even for non-technical users. Building on this user-centric design, each component is thoughtfully mounted on a skid-based frame.
The skid-mounted configuration simplifies transportation and relocation, making the system adaptable to evolving needs or new environments. In summary, this dual focus on user experience and modular engineering ensures the system is both operator-friendly and logistically flexible, excelling in dynamic settings like ships or remote installations.
Seawater desaliantion system and runction:
Our marine desalination system harnesses Sea Water Reverse Osmosis (SWRO) technology to deliver fresh, clean water. At the heart of this process lies the application of pressure, which compels water molecules to pass through a semipermeable membrane, effectively separating them from salt and impurities. Central to this filtration is the RO membrane—a critical component that acts as a selective barrier, allowing only pure water to permeate while rejecting contaminants.
For applications demanding the highest water quality, the system can be optionally upgraded with a UV sterilizer and ozone generator. These advanced modules work in tandem to neutralize microorganisms and ensure the water meets stringent purity standards.
| HY-SWRO-250L/hr (5m3/D) | |||
| Flow rate | 5000L/day | Recovery rate | 20% |
| Applicable power | 380V/50HZ 3 phase | Rated power | 3 KW |
| Feedwater TDS | <45000ppm | freshwater TDS | <600ppm |
| Working pressure | 60 bar | operating temperature | 5-45℃ |
| Feedwater residual chlorine | <0.1ppm | Feedwater SDI | <5 |
| Feedwater turbidity | <1NTU | Feedwater PH value | 3-10 NTU |
| RO membrane housing | 4040-1 core 2 piece | RO membrane | 2 piece |
| Equipment specification | 1.1*1.02*1.60（m） | Net weight | / |
| Packing specification(Plywood) | 1.16*1.10*1.75（m) | Gross weight | / |
