Reverse osmosis brackish bwro water treatment systems

We categorize brackish water with a TDS of 2,000 ppm-15,000 ppm Brackish water comes from the desert, from wells with high salinity close to the ocean.

Brackish water treatment common treatment processes use reverse osmosis proecess:

Reverse Osmosis (RO) Technology

Reverse osmosis technology uses a semipermeable membrane to remove solutes (such as salts, heavy metals, etc.) from water under pressure. It is the most widely used desalination process.

25m3/hr reverse osmosis brackish bwro water treatment systems process detaisl

Brackish water treatment systm design as flows：

1) Input water: Seawater, set TDS=10,000ppm

2) Output water: TDS less than 200ppm

3) Water temperature: 2—50℃

4) Production capacity: 600m3PD

5) Voltage: 415V/50Hz, 3 phase

6) Power supply:Single unit power need 53KW/single unit

7) Delivery: 40ft High 1 pcs

Reverse osmosis brackish system details: (for Quataer deep well water)

HY-BWRO 25m3/hr(600m3/D)
Flow rate	600T/day	Recovery rate	60%
Applicable power	380V/50HZ 3 phase	Rated power	53KW
Feedwater TDS	<15000ppm	freshwater TDS	<200ppm
Working pressure	<2-3.0Mpa	operating temperature	5-45℃
Feedwater residual chlorine	<0.1ppm	Feedwater SDI	<5
Feedwater turbidity	<1NTU	Feedwater PH value	3-10
RO membrane housing	8040-6 core,5piece	RO membrane	30 piece
Equipment specification	11X2.2X1.7m)	Net weight	/
Packing specification(Plywood)	Need to 40ft container	Gross weight	/

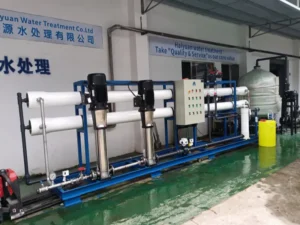

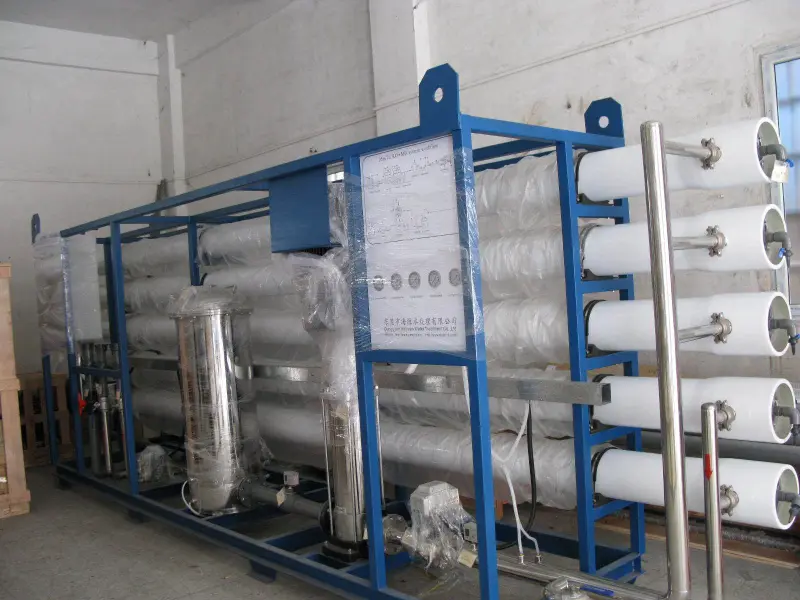

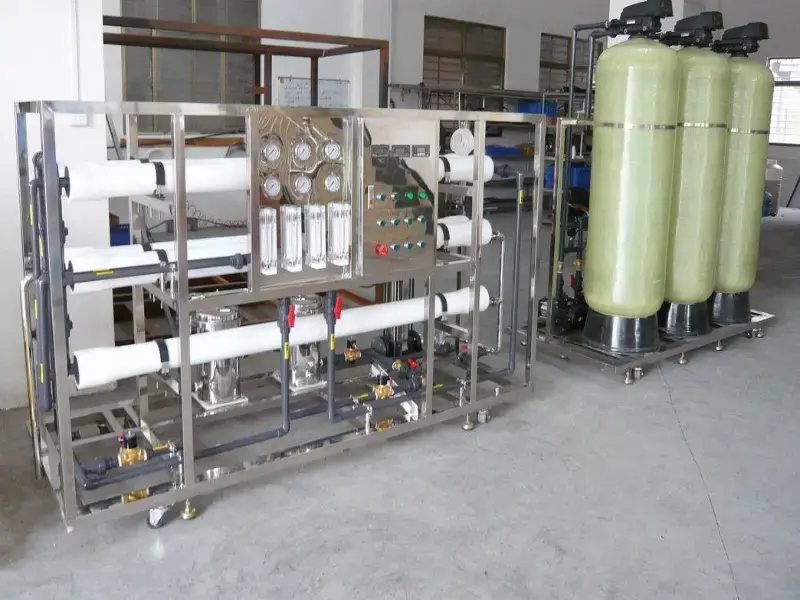

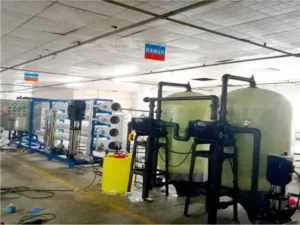

25m3/hr well water RO unit   (TDS 7530PPM)                        10m3/hr brackish water TDS 7000ppm

Inquiry bwro system brackish water reverse osmosis system Guides

To find the most appropriate for your use, please advise the following information ready
· Product water flow rate ( m3/hr, m3/day, Liter/hr,GPM,GPD etc.)
·Product water purpose(drinking, irrigation, industry process or others)
· Feed Water TDS (Total dissolved solids). Is it from Borehole/salt/brackish/lake water
· Power (110/220/380V/415V/460V, 50 or 60 Hz) 3 phase.
·  It is necessary to make water analysis reprot for borehole water,lake water, seawater.
·  If soure water is tap water no need end to us TDS or water analysis report.
