Nanofiltration (NF) System process
Function: NF membranes filter out divalent ions, larger organic molecules, and small particles, allowing monovalent ions and smaller molecules to pass through.
Pressure-Driven: Operates under moderate pressure (typically 4-20 bar) to achieve selective separation.
Pre-treatment:
Sediment Filtration: Removes larger particles before NF.
Carbon Filtration: Eliminates chlorine and organics to protect NF membranes.
Permeate and Concentrate Streams:
| Nanofiltration system apply | |||
| Application | Permeate | Concentrate | Benefits of NF |
| Whey / Whey Permeate | Salty wastewater | Desalted whey concentrate | Allows the recovery of lactose and whey protein concentrate with reduced salt content |
| Textile | Dyes | Water, salts, BOD, COD and color | NF is used to desalt dyes resulting in a higher value product |
| Caustic cleaning solutions | Caustic cleaning solution | BOD, COD, suspended solids, caustic cleaner | Allows caustic cleaning solution to be recycled resulting in reduced cleaning chemical costs |
| Recycle of acid solutions | Acid solution | BOD, COD, calcium, suspended solids, acidic water | Allows acid solution to be recycled resulting in reduced cleaning chemical costs |
| Water | Softened water | Hard water | Potable water production. Softened water reduces scaling on equipment and heat exchange surfaces |
| Antibiotics | Salty waste product | Desalted, concentrated Antibiotics | NF produces high value pharmaceutical products |

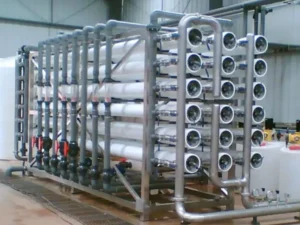

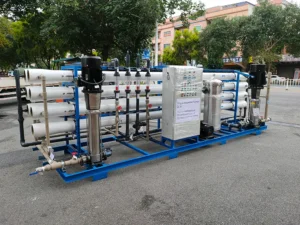

40m3/hr nanofiltration system remove colour from treated wast waer for Bahrain client
Project information: TDS 3500mg/L, color 500 PtCo, COD 300mg/L, BOD 5mg/L, sulfate ion 1400mg/L, chloride ion 300 ppm
Water production requirements: To separate color and sulfate ions from water
Water production: 40T/hr
Voltage frequency: 3PH x 380V, 50Hz, 54KW
Installation size: L×W×H(m), Transportation: 1 40-foot high cabinet
Equipment with backish wash pump and CIP pump with CIP filter
Oprtion PLC and HMI Brand: Mitsubishi, WEINVIEW. Siemens.
Option pump brand: NP or Grudnfos pump
Our conments: NP and vontron membrane have good price and nice quality.
