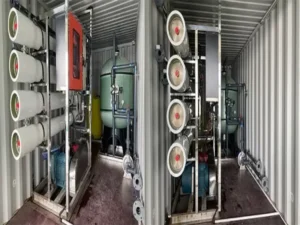

Design scope containerized reverse osmosis water treatment ro plant for Angola client
- Feed water: well water, TDS=7218ppmPH7.19
- Product water: Domestic drinking water, TDS44.1 ppm
- Water temperature: 2—50℃
- Production capacity:10m³PH
- Voltage: 3PH x 380V, 50Hz
- Power supply:19.4KW
- Quotation validity period: 3 months
- Packing :1*40HQ
Containerized ro water treatment plant process flow 10m3/hr
Source water tank → Booster water pump→ Sand filter→ Anti-scalant dosing→ 5µ Cartridge filter→ 1µ Cartridge filter→ High pressure pump→ RO system(CIP)→UV sterilizer→ Product water tank
Containerized ro plant 10m3/hr parameter.
| HY-SWRO-10m3/hr(200m3/D) | |||
| Flow rate | 200m3/day | Recovery rate | 60% |
| Applicable power | 380V/50HZ 3 phase | Rated power | 19.4 KW |
| Feedwater TDS | <7500ppm | freshwater TDS | <100ppm |
| Working pressure | <3 Mpa about | operating temperature | 5-45℃ |
| Feedwater residual chlorine | <0.1ppm | Feedwater SDI | <5 |
| Feedwater turbidity | <1NTU | Feedwater PH value | 3-10 |
| RO membrane housing | 8040-5 core, 2pcs | RO membrane | 10 piece |
| Equipment specification | 10X2X1.65(m) | Net weight | / |
| Packing specification(Plywood) | Need 40HQ container | Gross weight | / |

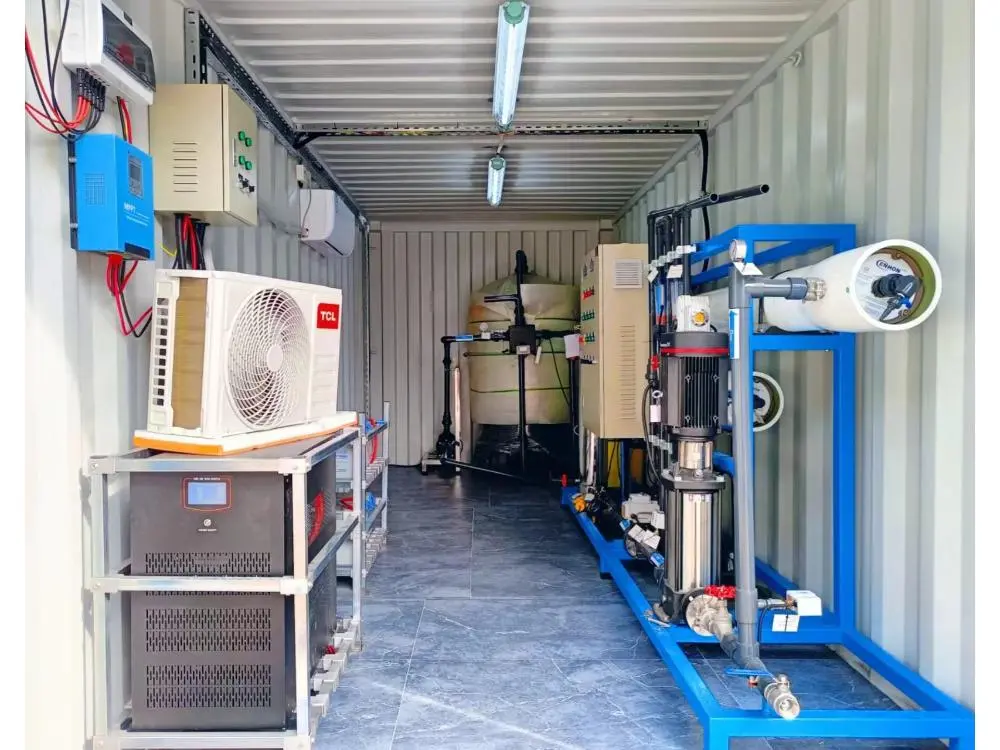

Containerized water treatment plant main advantages
The containerized water treatment plant includes not only the supply of containers, but also the complete installation of the plant: pumps, filters, skids, connecting pipes between tanks, connecting pumps and instruments inside the container to the main control electrical box.

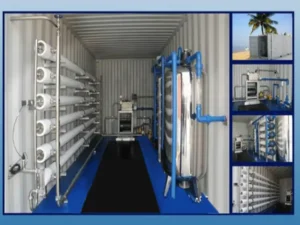

Containerized water system Mobile containerized seawater desalination plant
Containerized ro plant Inquiry Guides
To find the most appropriate for your use, please advise the following information ready
· Product water flow rate ( m3/hr, m3/day, Liter/hr,GPM,GPD etc.)
·Product water purpose(drinking, irrigation, industry process or others)
· Feed Water TDS (Total dissolved solids). Is it from Borehole/salt/brackish/lake water
· Power (110/220/380V/415V/460V, 50 or 60 Hz) 3 phase.
· It is necessary to make water analysis reprot for borehole water,lake water, seawater.
· If soure water is tap water no need end to us TDS or water analysis report.
Quickly discuss and reply you. My whatsapp +86 13798883773, +8613532836525
