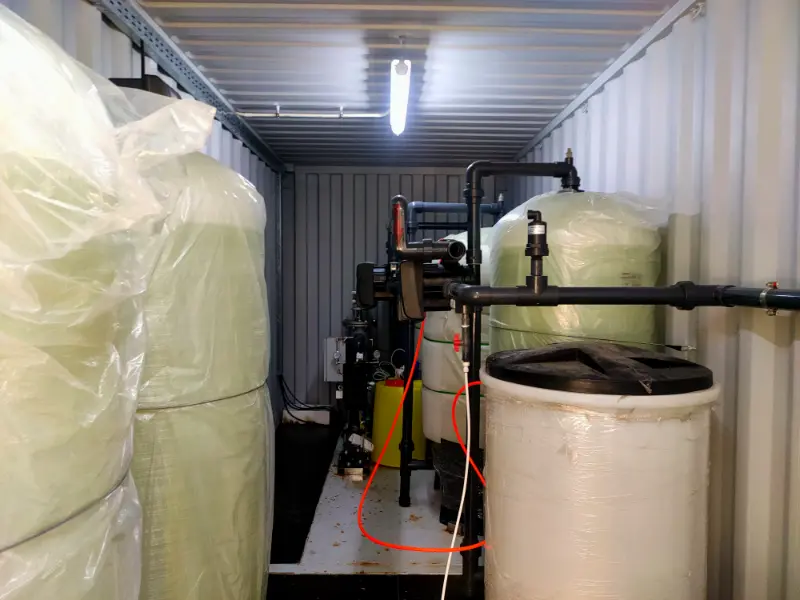

Containerized reverse osmosis system water treatment ro system
Source water from well water.TDS 7000ppm.
Treated water for irrigation.
Used in Canadian country
Containerized RO systems have many advantages over built-in plant room installations:
- Plug and play unit
- Quick installation
- Limited civil work (only container foundation)
- Small foot print
- Easy transportation
- Mobile: useful for construction sites
- Turnkey delivery: piping, cables, air conditioning
Containerized reverse osmosis ro water treatment systems feature：
system in insulated (20 or 40 ft) containers. Containerization includes all piping and fittings connected, all cables and wires connected to instrument and control cabinet. This is a “plug and play” desalination system supply.
The containerized SWRO plant will be mounted with one side door, one inlet/outlet (terminal point), one side door and floor drainage.
The container can be air cooled on request. The Air condition is a split-unit and the outdoor part will be placed next to the container.
Haiyuan provides all kinds of pre-treatment required before SWRO, according to source water analysis and process requirements.
Containerized reverse osmosis ro systems Size / Standard
Depending on the plant size, containerized plant in 20 or 40 ft container(s) are available.

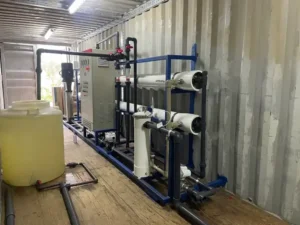

Canada client need 18m3/hr Containerized reverse osmosis ro systems just put into 40ft container.
| Below is 40HGP container capacity paramete | |||||
| Model | Membrane model*qty | Capacity m3/D | Weight/kg | Operating Pressure/Mpa | Power |
| HYSW-40HGP-60 | 8040×6 | 60 | 4900 | 4.0-6.5 | 380V-440V
/50Hz-60Hz |
| HYSW-40HGP-80 | 8040×8 | 80 | 5050 | 4.0-6.5 | |
| HYSW-40HGP-100 | 8040×10 | 100 | 5150 | 4.0-6.5 | |
| HYSW-40HGP-120 | 8040×12 | 120 | 5230 | 4.0-6.5 | |
| HYSW-40HGP-150 | 8040×16 | 150 | 5530 | 4.0-6.5 | |
| Container-frame: 40 ft according to ISO- standard (12,4 x 2,4 x 2,8 meter). |
|||||
| · suit for long-distance transport
· easy installation · save space for customers More detail need customized according user requirement. |
|||||

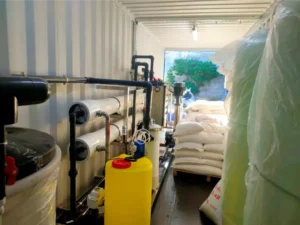

10m3/hr Containerized ro system 10m3/hr deep water desalination plant
Inquiry Guides
To find the most appropriate for your use, please advise the following information ready
· Product water flow rate ( m3/hr, m3/day, Liter/hr,GPM,GPD etc.)
·Product water purpose(drinking, irrigation, industry process or others)
· Feed Water TDS (Total dissolved solids). Is it from Borehole/salt/brackish/lake water
· Power (110/220/380V/415V/460V, 50 or 60 Hz) 3 phase.
· It is necessary to make water analysis reprot for borehole water,lake water, seawater.
· If soure water is tap water no need end to us TDS or water analysis report.
