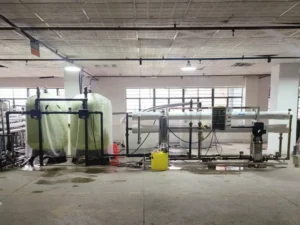

Brackish water reverse osmosis plant for Morocco
What is the brackish water ro plant?
Brackish water ro plant is a kind of water with high salt content and bitter taste. It is mainly distributed in desert areas and arid areas. The main components of brackish water include a large amount of neutral salt and alkaline substances. Its pH value is greater than 7, and the salt content is generally between 1500-15000mg/L.
The formation of brackish water has various reasons, including excessive water use, a long time, a drop in water level caused by crustal movement, seawater backflow, and surface water flowing through saline-alkali land. This water contains many heavy metals and harmful impurities. Drinking it directly may cause gastrointestinal dysfunction and low immunity. Long-term drinking may even cause digestive system diseases, cirrhosis, cancer and other diseases.
Therefore, Normal we will use reverse osmosis plant to treatment brackish water is crucial to ensure the health and quality of life of local residents.
Brackish water reverse osmosis plant Design Scope
- Feed water: Well water, conductivity 17,754 µS/cm.
- Treatedwater: Required conductivity 750-1500 µS/cm. After the water treatment plant, conductivity can reach 100µS/cm, which is not only suitable for animals and irrigation, but also good for people drink & daily use.
- Production capacity: 10m3 per hour.
- 4. Power supply: 3PH x 380V, 50Hz, total 37.5KW
- 5. Installation size: L11 × W 2 × H2.6(m)
- Brackish water ro treatment plantProcess Flow
Well water storage tank → Booster water pump → Sand filter → Antiscalant dosing system → Precision filter → High pressure pump → RO system (CIP) → Product water storage tank
(The water storage tanks should be provided by customer)
| HY-BWRO 10m3/hr(240m3/D) | |||
| Flow rate | 240/day | Recovery rate | 65% |
| Applicable power | 380V/50HZ 3 phase | Rated power | 37.5KW |
| Feedwater TDS | <9000ppm | freshwater TDS | <200ppm |
| Working pressure | <2-3.0Mpa | operating temperature | 5-45℃ |
| Feedwater residual chlorine | <0.1ppm | Feedwater SDI | <5 |
| Feedwater turbidity | <1NTU | Feedwater PH value | 3-10 |
| RO membrane housing | 8040-6 core,5piece | RO membrane | 30 piece |
| Equipment specification | 11X2.2X1.7m) | Net weight | / |
| Packing specification(Plywood) | Need to 40ft container | Gross weight | / |
25m3/hr brackish water RO unit TDS 7530PPM 10m3/hr brakcish water TDS 7600PPM
Inquiry Bwro system brackish water reverse osmosis system Guides
To find the most appropriate for your use, please advise the following information ready
· Product water flow rate ( m3/hr, m3/day, Liter/hr,GPM,GPD etc.)
·Product water purpose(drinking, irrigation, industry process or others)
· Feed Water TDS (Total dissolved solids). Is it from Borehole/salt/brackish/lake water
· Power (110/220/380V/415V/460V, 50 or 60 Hz) 3 phase.
· It is necessary to make water analysis reprot for borehole water,lake water, seawater.
· If soure water is tap water no need end to us TDS or water analysis report.
