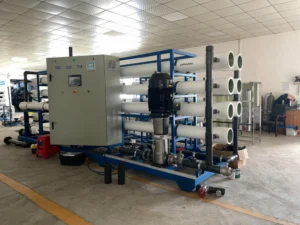

Brackish water ro reverse osmosis system bwro for salt water 50m3ph
Brackish water ro reverse osmosis system introduction:
This is a brackish water reverse osmosis system. Our customer is from Libya and hopes to use our ro system to treat brackish water with TDS 3850ppm, pH 6.57, and total hardness 945 for drinking. The treated water should reach an output of 50m3/h and TDS 43.6ppm. In order to better meet the needs of customers, we have specified a professional plan.
Parameter Table：
|
Flow rate |
50m3/h | Recovery rate | 65% |
| Applicable power | 3PHx380V,50Hz | Feedwater TDS | 3850ppm |
| Rated power | 73.5KW | Freshwater TDS | 43.6ppm |
| Salt rejection rate | 99.5% | Feedwater PH value | 6.57 |
| operating temperature | 5-45℃ | RO membrane housing | 8040*6 core,9 pcs |
| Equipment specification | L14×W3×H3.5（m) | RO membrane |
54 pcs |
How They Work and Where They Fit?
A brackish water system treats water that’s saltier than freshwater but less salty than seawater (think wells, estuaries, or coastal groundwater). Here’s the straightforward breakdown:
Brackish water ro reverse osmosis system Flow
Pretreatment
- Screening: Removes big stuff like quarts sand filter, dirt, or algae.
- Chemical dosing: Adds stuff like chlorine (to kill bacteria) or antiscalants (to stop minerals from clogging the system later).

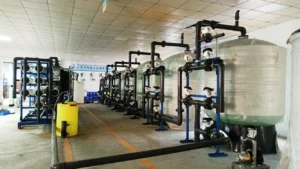

- Filtration: Uses sand filters or cartridge filters to trap smaller particles.
- Reverse Osmosis (RO)
- The heart of the system. Water gets pushed through a semipermeable membrane at high pressure.
- The membrane blocks 90-99% of salts, metals, and other nasties. What’s left is clean water (called “permeate”) and a salty waste stream (“brine”).
- Post-treatment
- pH adjustment: RO water can be acidic, so lime or other chemicals balance it.
- Disinfection: A final zap of UV light or chlorine to make sure it’s safe to drink or use.
Where Brackish water ro reverse osmosis system Used?
- Dry inland areas: Treats salty groundwater for drinking or farming (e.g., parts of Australia, the Middle East).
- Coastal zones: Fixes saltwater-contaminated wells or estuaries.
- Agriculture: Makes irrigation water less salty to protect crops.
- Industries: Provides low-salt water for factories, power plants (cooling systems), or small-scale bottling.
Electrical Power of ro reverse osmosis system
For industrial Reverse Osmosis Seawater Purification System needs 380V/50Hz/60Hz or . For bigger capacity, because of high pressure pump, it needs 380V/415V 50/60Hz. As regards to your Industrial RO Desalination Machine design, we will check your electrical supply and decide fix power to you.
Talk to a Haiyuan expert and find out how we can help you !! please contact us!
WhatsApp +8618825874379 Email: haiyuan@swroplant.com
Please send us source test report or let us know the details info, such as PH, iron, manganese, hardness, turbidity, residual chlorine and TDS=total dissolved solid, Fe, Mg, Hardness Turbidity etc. whether over proof etc.)
